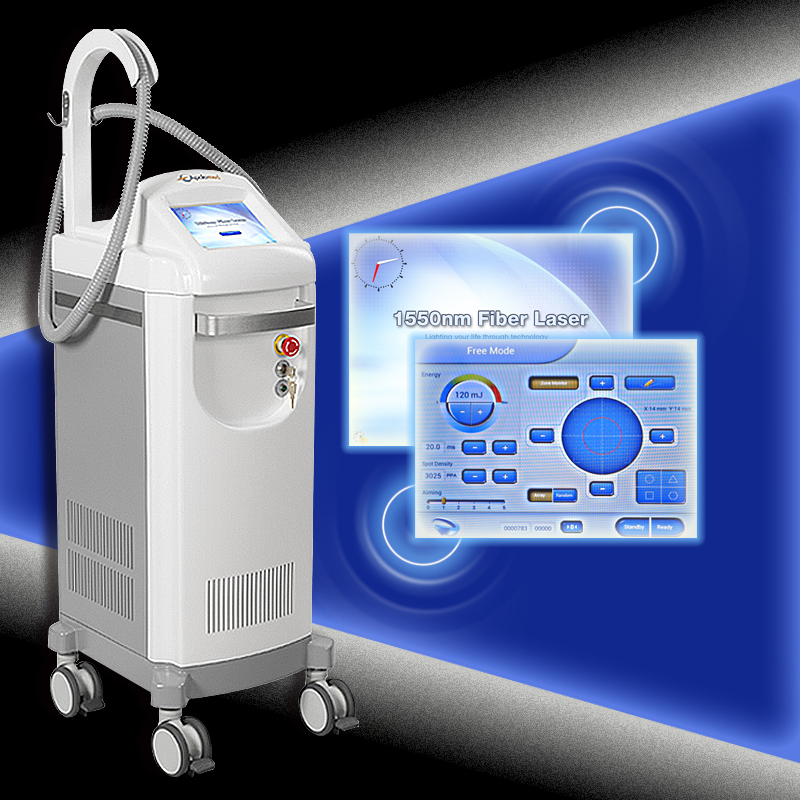

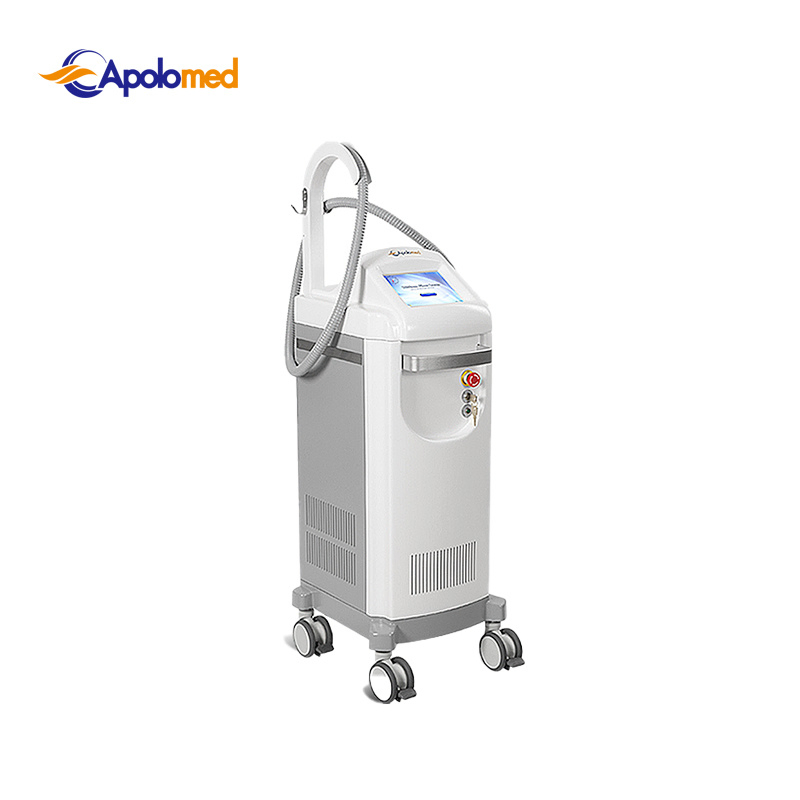

Acne Treatment Mdrce, CE, ISO13485 Certification 15W Erbium Laser 1550nm Fiber Device
Product Description

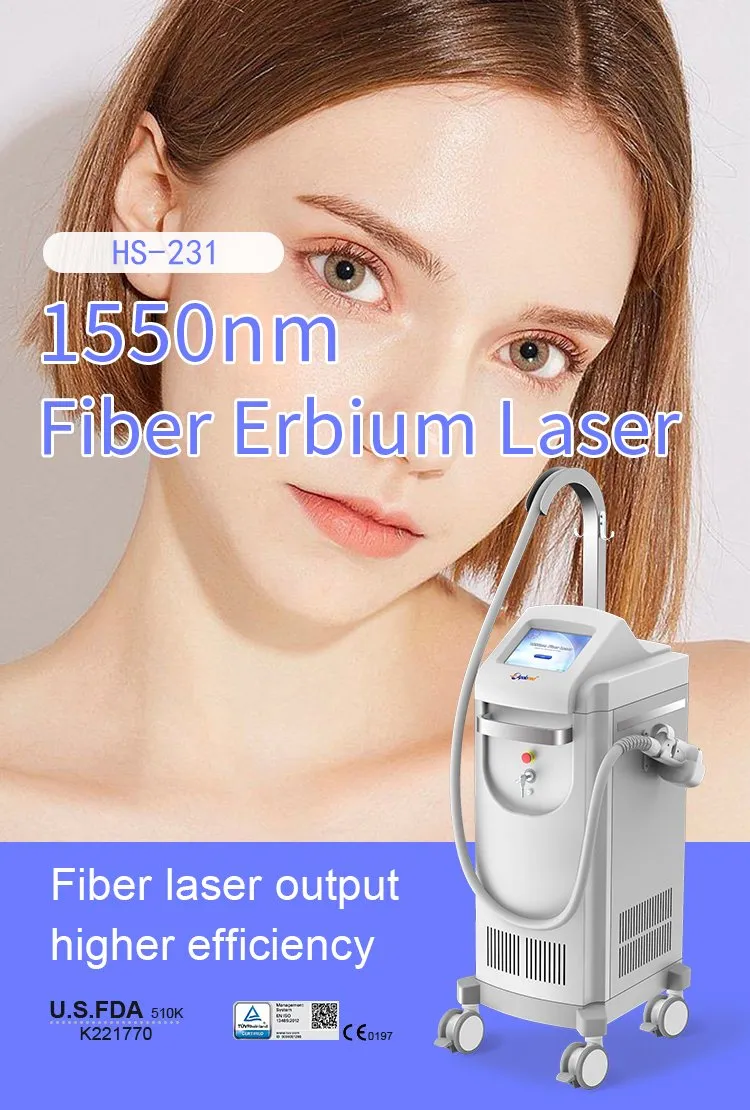

Acne Treatment, CE & ISO13485 Certified 15W Erbium Laser 1550nm Fiber Device

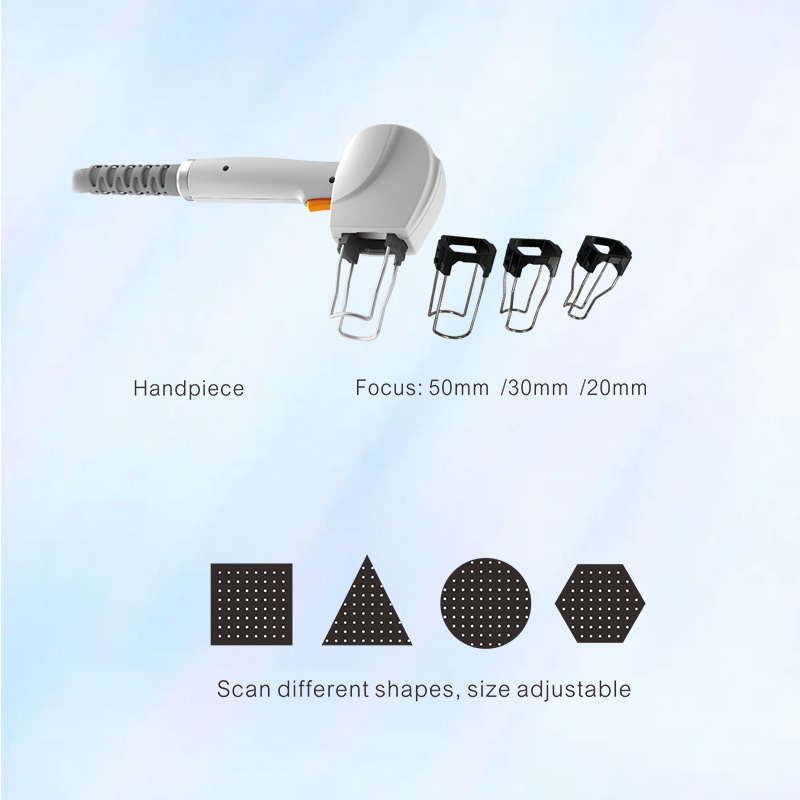

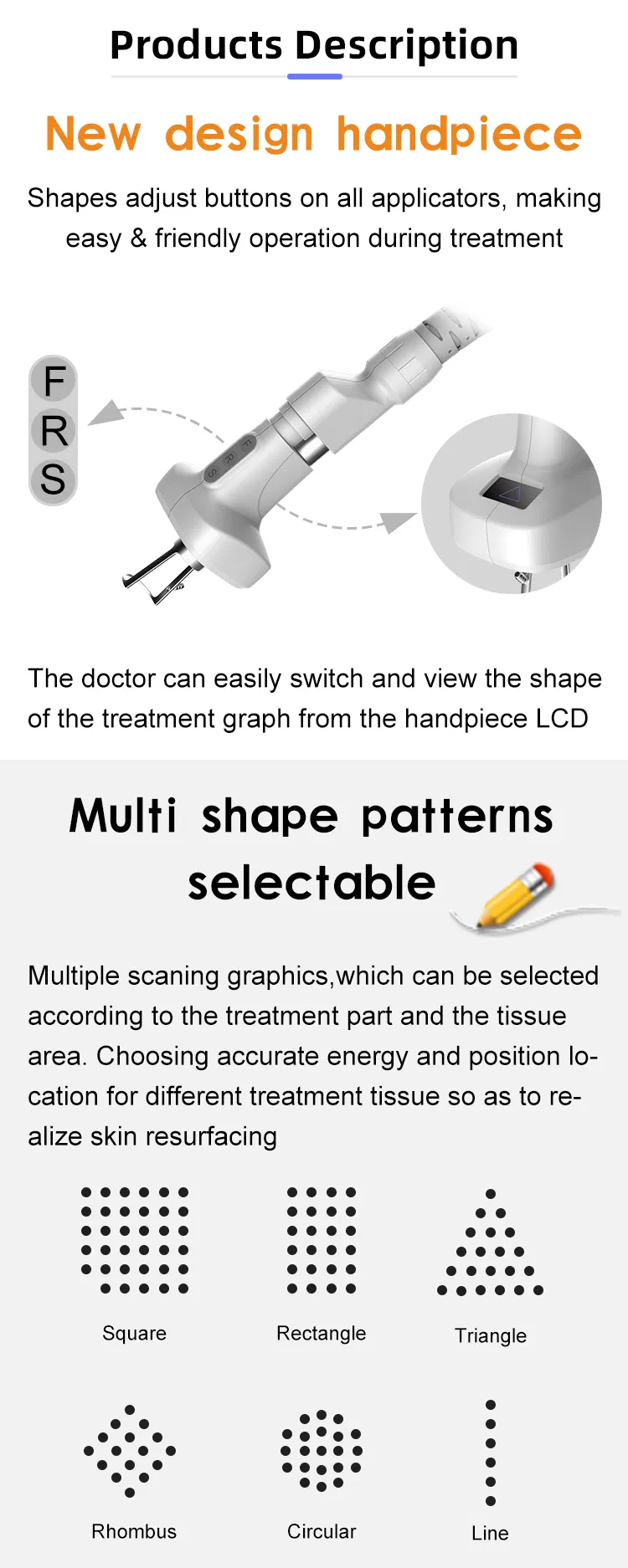

Fiber laser output, shorten recovery time. Hand-drawing function supported with 4 different scan shapes.
Operating Principle
The 1550nm Erbium fiber laser is split into numbers of microscopic beams targeting the skin, known as microscopic thermal zones. These fractionized beams trigger the natural healing process of the skin while keeping the surrounding tissues coagulated.
The treatment effectively removes old epidermal pigmented cells and penetrates deep into the dermis, remodeling collagen and stimulating skin regeneration. As the dermis fiber thickens, micro-wounds heal quickly, restoring smooth and rejuvenated skin after successive treatments.
By limiting the laser heat to fractional damaged areas, the skin heals significantly faster compared to traditional, full-area resurfacing treatments. This ensures optimal clinical results with minimal downtime and side effects.
✔

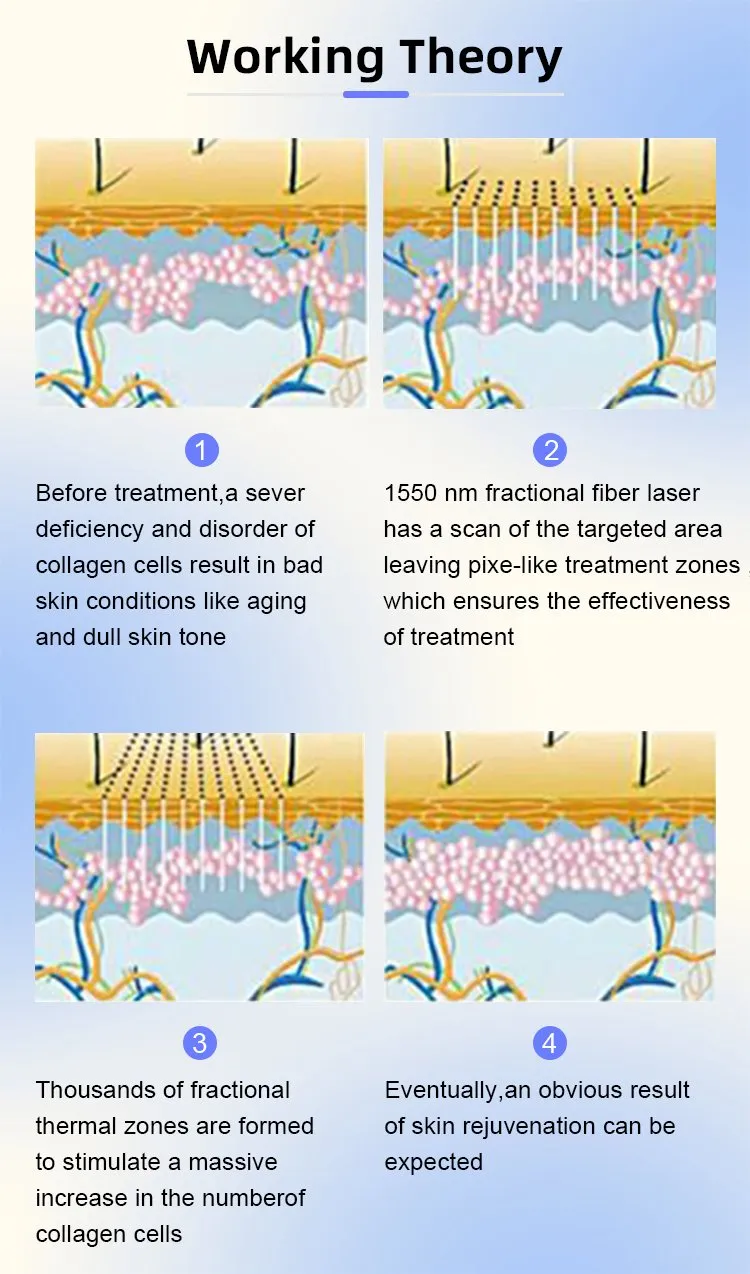

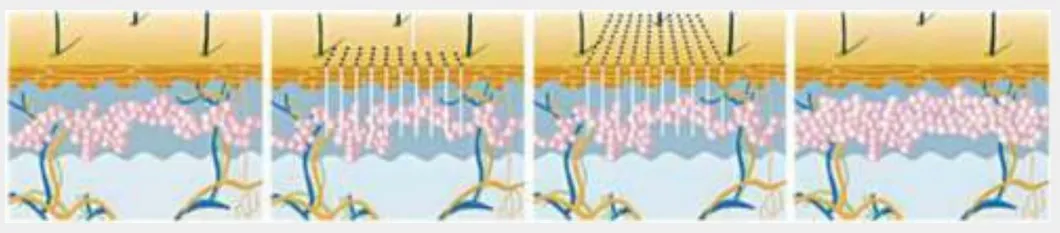

1. Before treatment, a severe deficiency and disorder of collagen cells result in skin conditions like aging and dull skin tone.
✔
2. 1550 nm fractional fiber laser scans the targeted area, leaving pixel-like treatment zones to guarantee effectiveness.
✔
3. Thousands of fractional thermal zones are formed, stimulating a massive increase in new collagen cells.
✔
4. Eventually, a visible and lasting skin rejuvenation result is achieved.

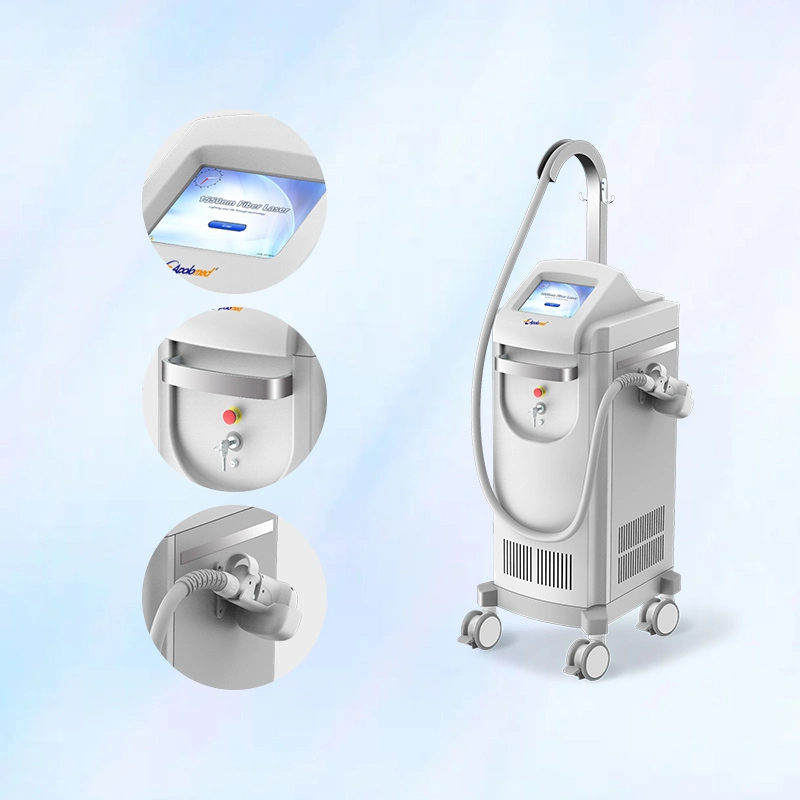

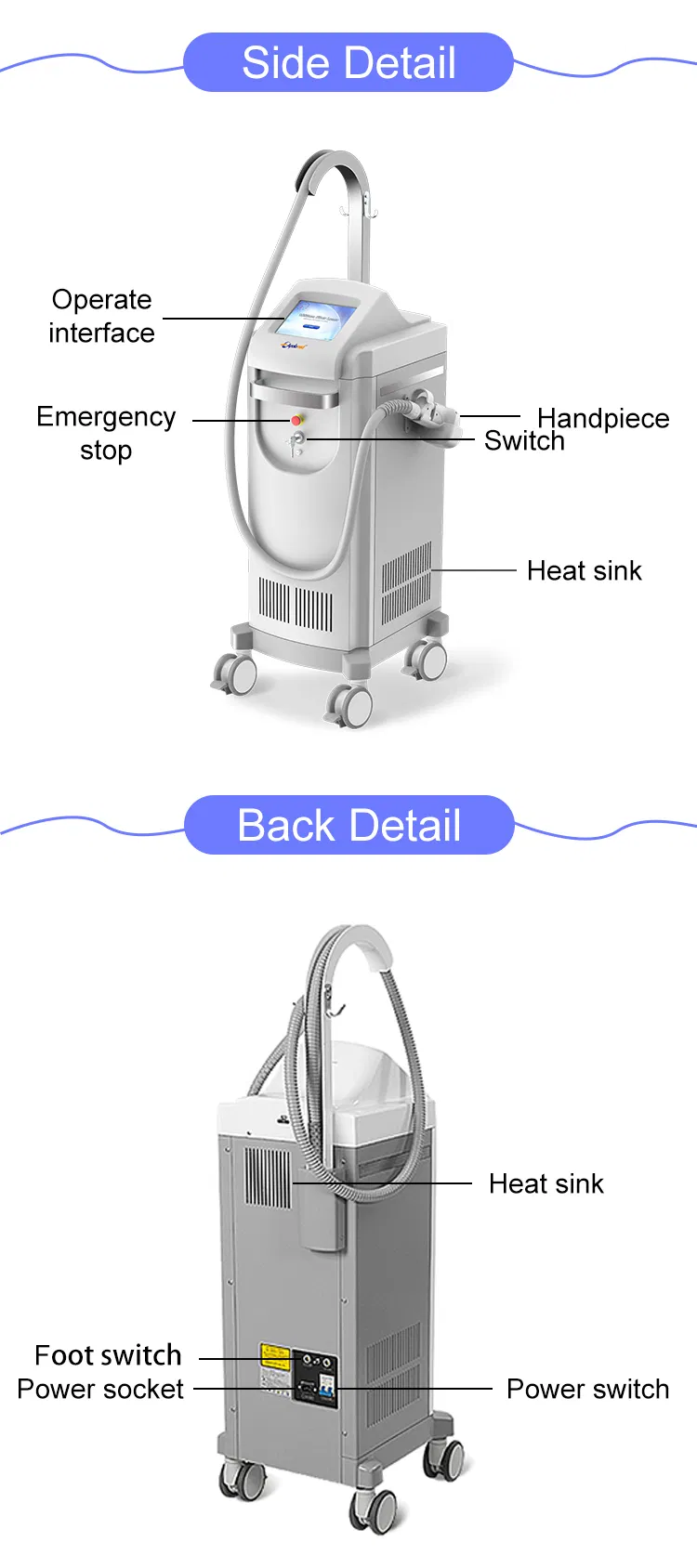

Product Details & Features

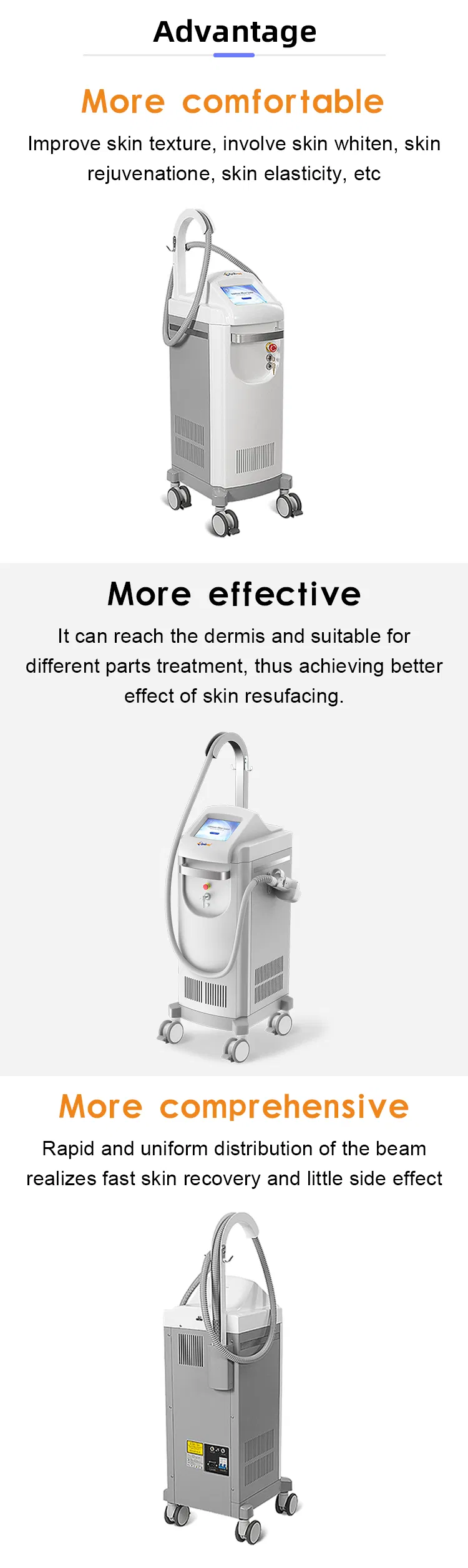

Key Advantages
✔
Treat a wider range of indications with only one machine
✔
Easily target specific treatment areas, including irregular shapes
✔
Compact handpiece designed for comfortable and easy treatments
✔
Fully adjustable density parameters for personalized treatment
✔

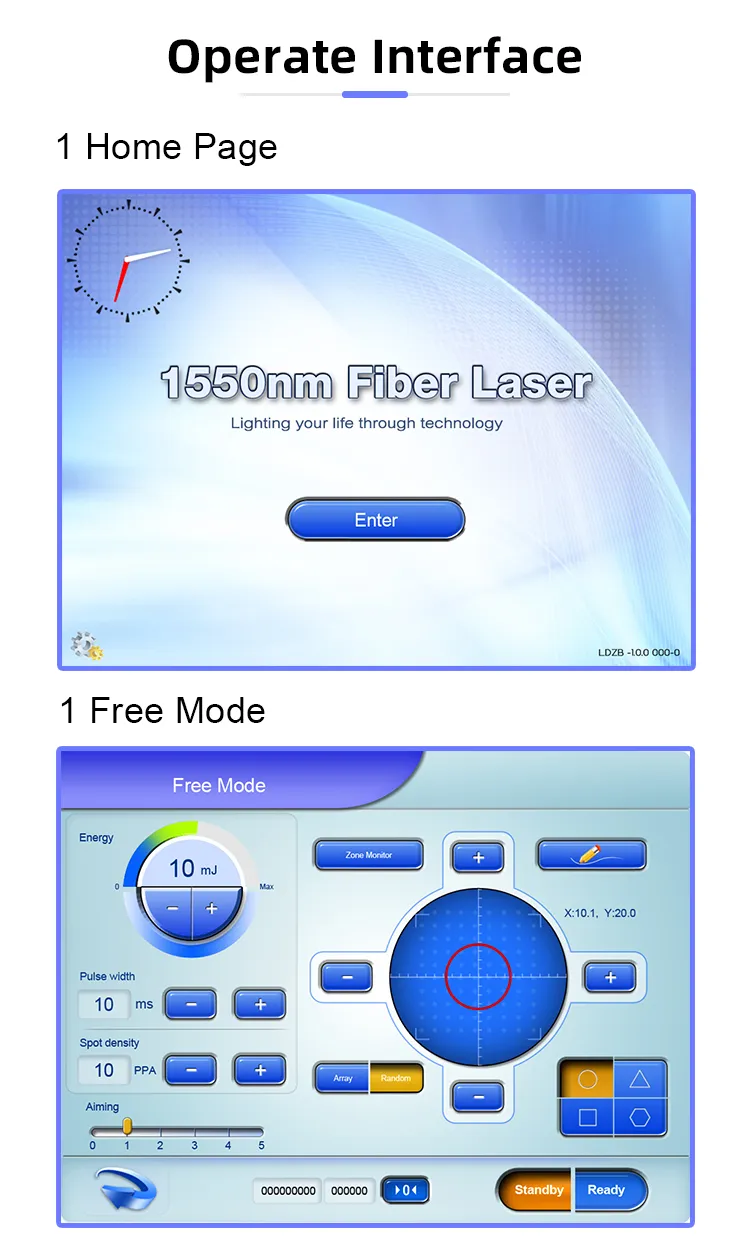

Intuitive touch screen interface for optimal results adjustment
✔
Stable, high-quality energy output ensuring excellent clinical outcomes
✔
RF ID management control design integrated with Android OS
Primary Applications
✦
Skin rejuvenation & Skin toning
✦
Wrinkle removal & Acne scar removal
✦
Skin resurfacing
✦
Stretch mark removal
Before & After Treatment
Technical Specifications
| Wavelength | 1550nm |
| Laser power | 15W |
| Laser output | 1~120mJ/dot |
| Density | 25~3025 PPA/cm² (12 levels) |
| Scan area | 20*20mm |
| Pulse width | 1~20ms/dot |
| Applicator size | 4*8cm |
| Operate mode | Array, Random |
| Operate Interface | 9.7" True color touch screen |
| Cooling system | Advanced air cooling system |
| Power supply | AC 100V~240V, 50/60HZ |
| Dimension | 43*51*135CM (L*W*H) |
| Weight | 55Kgs |

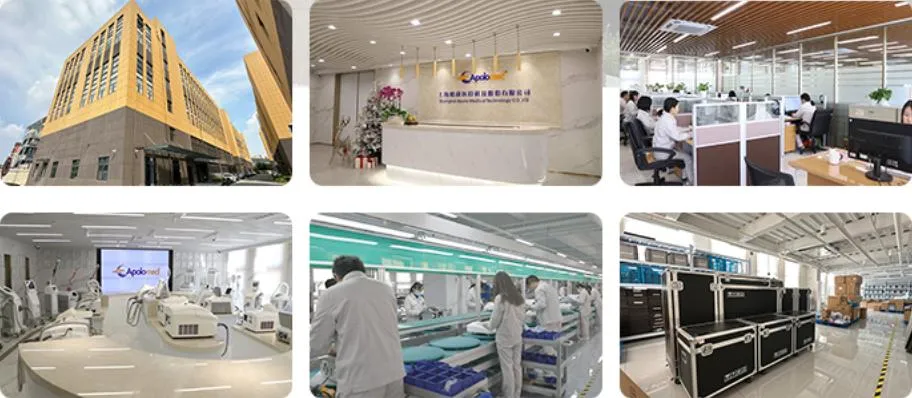

About The Manufacturer
A leading designer and manufacturer of Intense Pulsed Light (IPL), various laser technologies (Pico Nd:YAG, CO2...), Platform Laser, HIFU, PDT LED, and body slimming technologies for medical and aesthetic industries. Since its inception in 2001, the manufacturer has designed, developed, and manufactured over 40 high-standard devices to meet skin and beauty requirements, all designed in-house with patented technologies.
System Achievements:
✦
Fractional Laser 1064nm long-pulse laser
✦
Er Glass 1540nm laser
✦
Er Yag 2940nm laser
Commitment to Excellence & Global Presence:
Providing exceptional aesthetic laser and light-based solutions that improve health, well-being, and quality of life. The products are used globally by professionals in aesthetic and medical markets in over 40 countries through dedicated distributors spanning Eastern Europe, Middle East, Oceania, South & North America, and Asia.
Quality & Safety Compliance
Equipment is manufactured strictly in accordance with ISO 13485, and all products comply with Medical CE certificates under the Council Directive 93/42/EEC (MDD) and regulations (EU) 2017/745 (MDR). High-end products have also obtained certificates from US 510K, Australia TGA, and Brazil Anvisa.

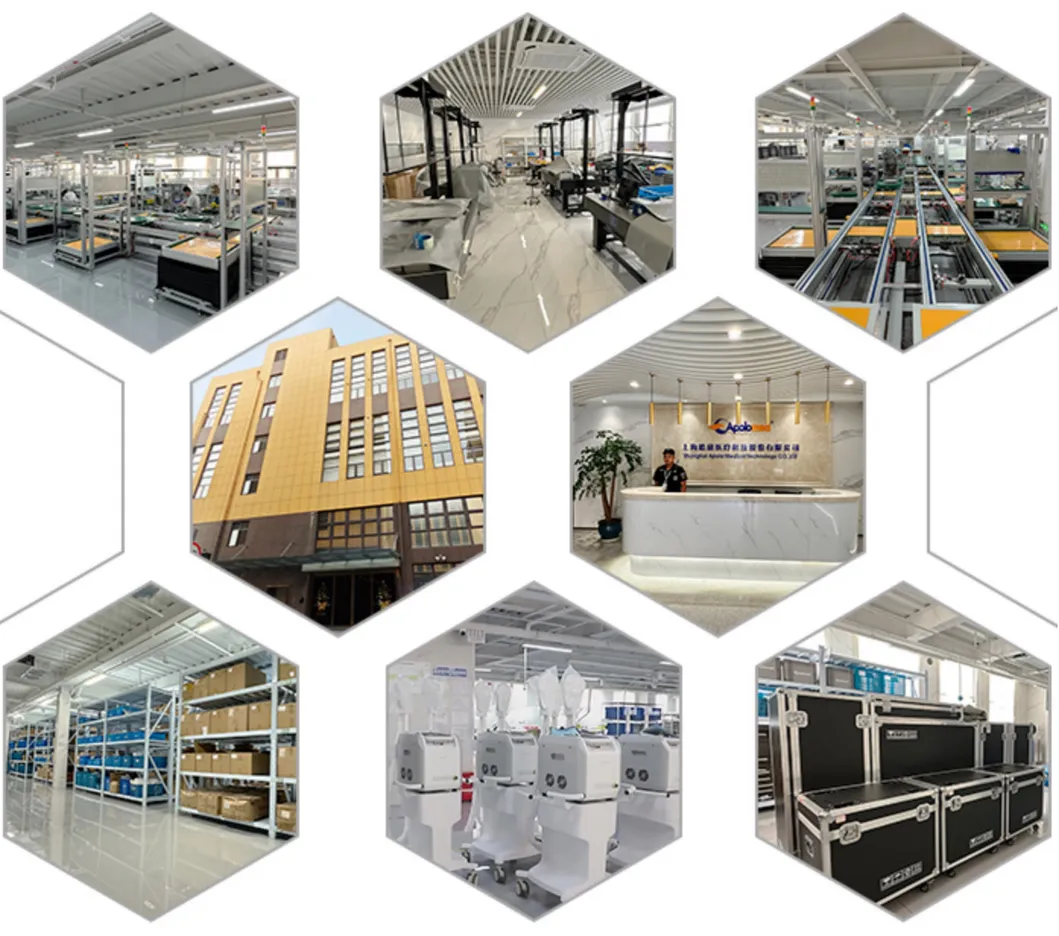

Factory & Exhibition
Frequently Asked Questions
Q1: What is the primary market distribution for these devices?
Our systems are distributed globally. The primary market distribution is South America (30%), Eastern Asia (30%), North America (20%), Western Europe (10%), Eastern Europe (5%), and Southeast Asia (5%).
Q2: How is product quality guaranteed?
Quality is consistently maintained through strict pre-production sample evaluation before mass production, combined with mandatory final inspections of all equipment before shipment.
Q3: What categories of beauty equipment are available?
We manufacture a broad range of systems including IPL Laser Beauty Equipment, HIFU Face Lifting Devices, Body Slimming Machines, and PDT LED Systems.
Q4: Why choose your systems over other suppliers?
Benefits include over 23 years of manufacturing and foreign trade experience, self-developed software with factory-setting programs, in-house designed outer structures, a robust quality control process, timely after-sales support, and complimentary technical training.
Q5: What are the accepted delivery terms and payment options?
We support FOB, CFR, CIF, EXW, and Express Delivery terms. Accepted payment methods include T/T, L/C, MoneyGram, and Western Union (primarily in USD).
Q6: What languages does your support team speak?
Our service team speaks English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
