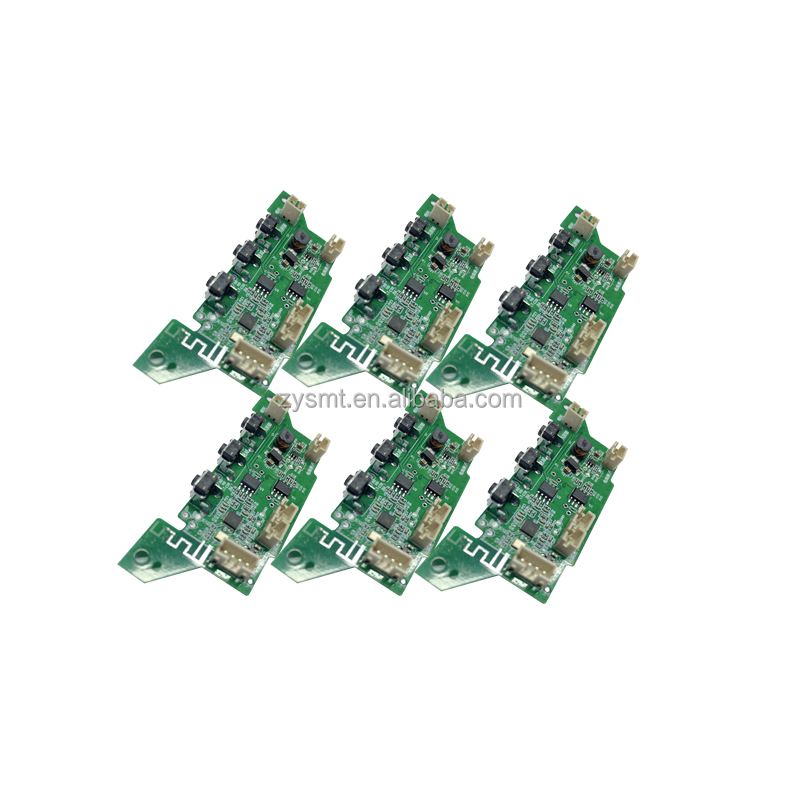

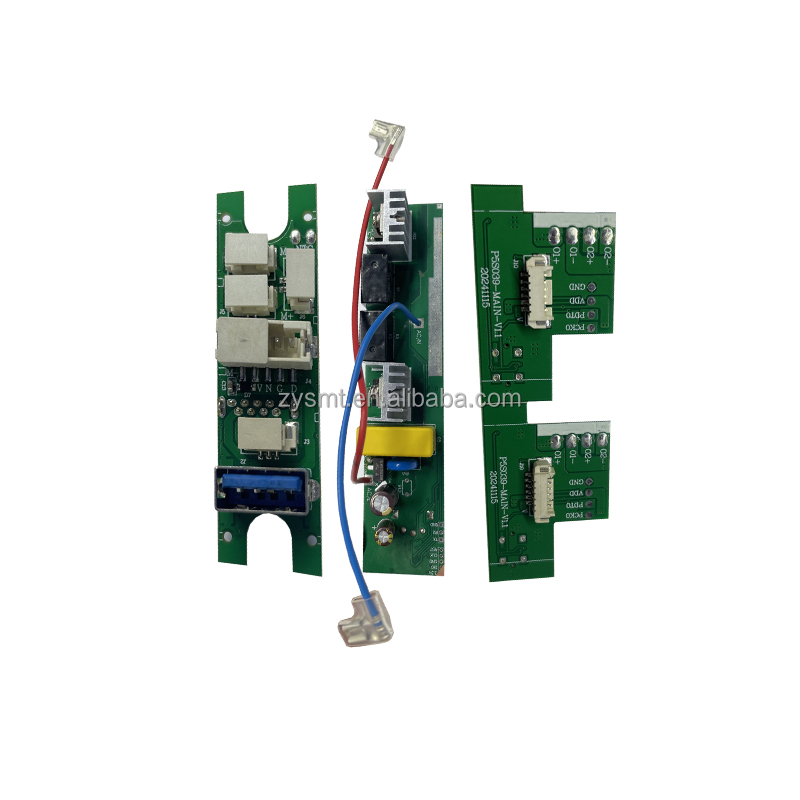

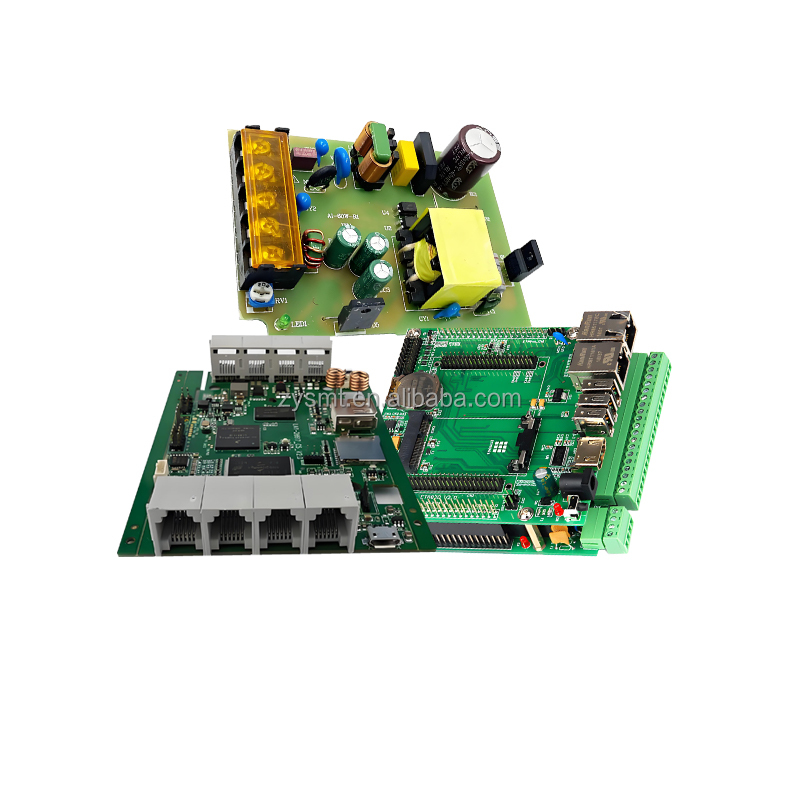

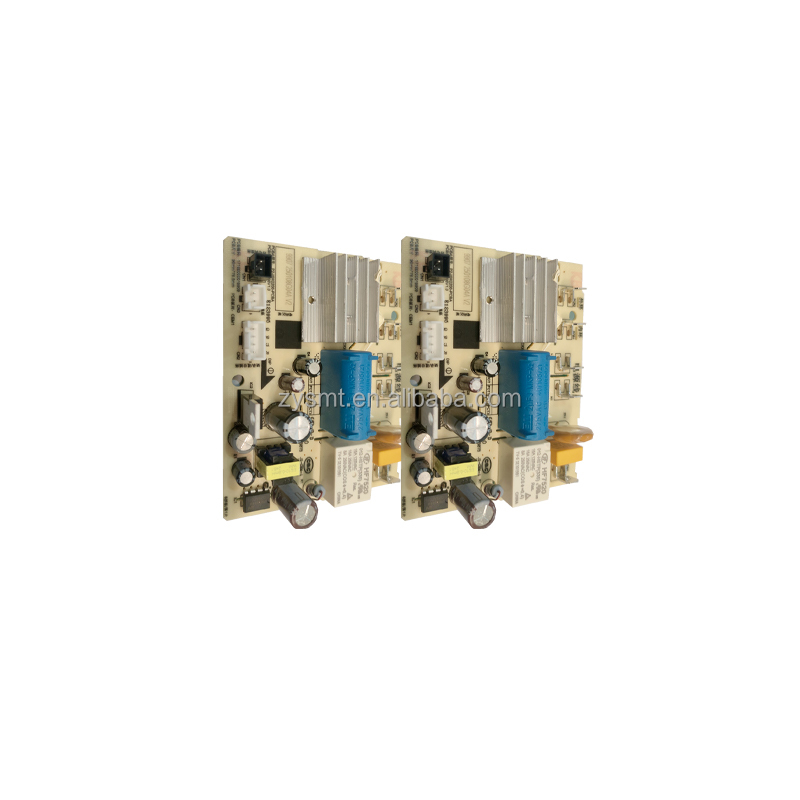

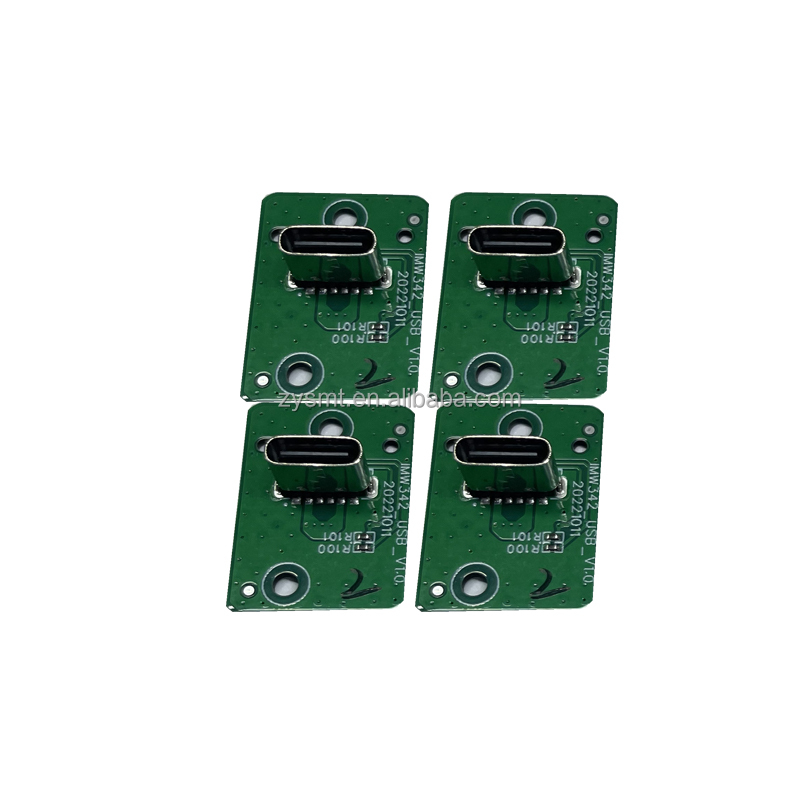

LED Light Therapy Mask with PCB & PCBA Technology
Product Description
Company Profile

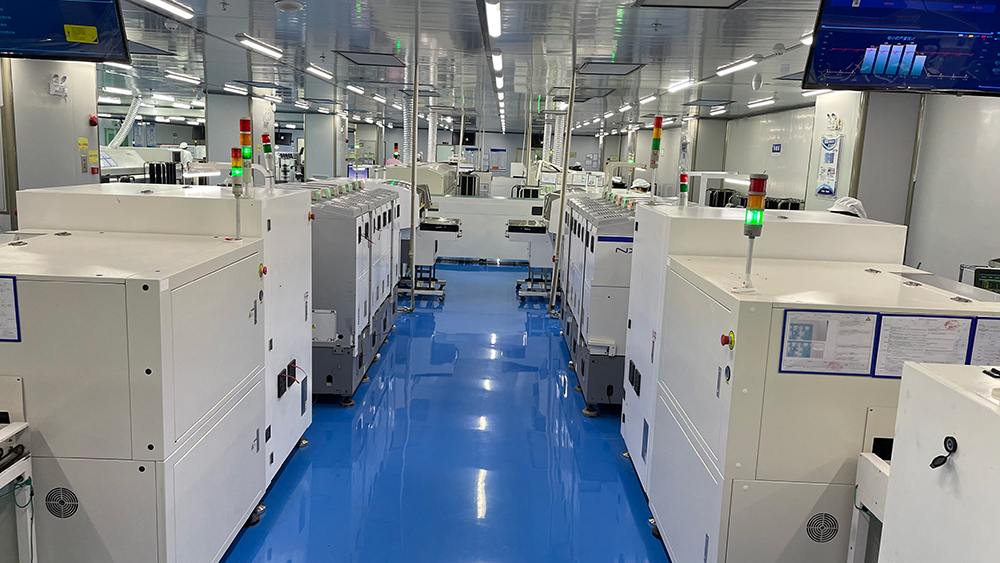

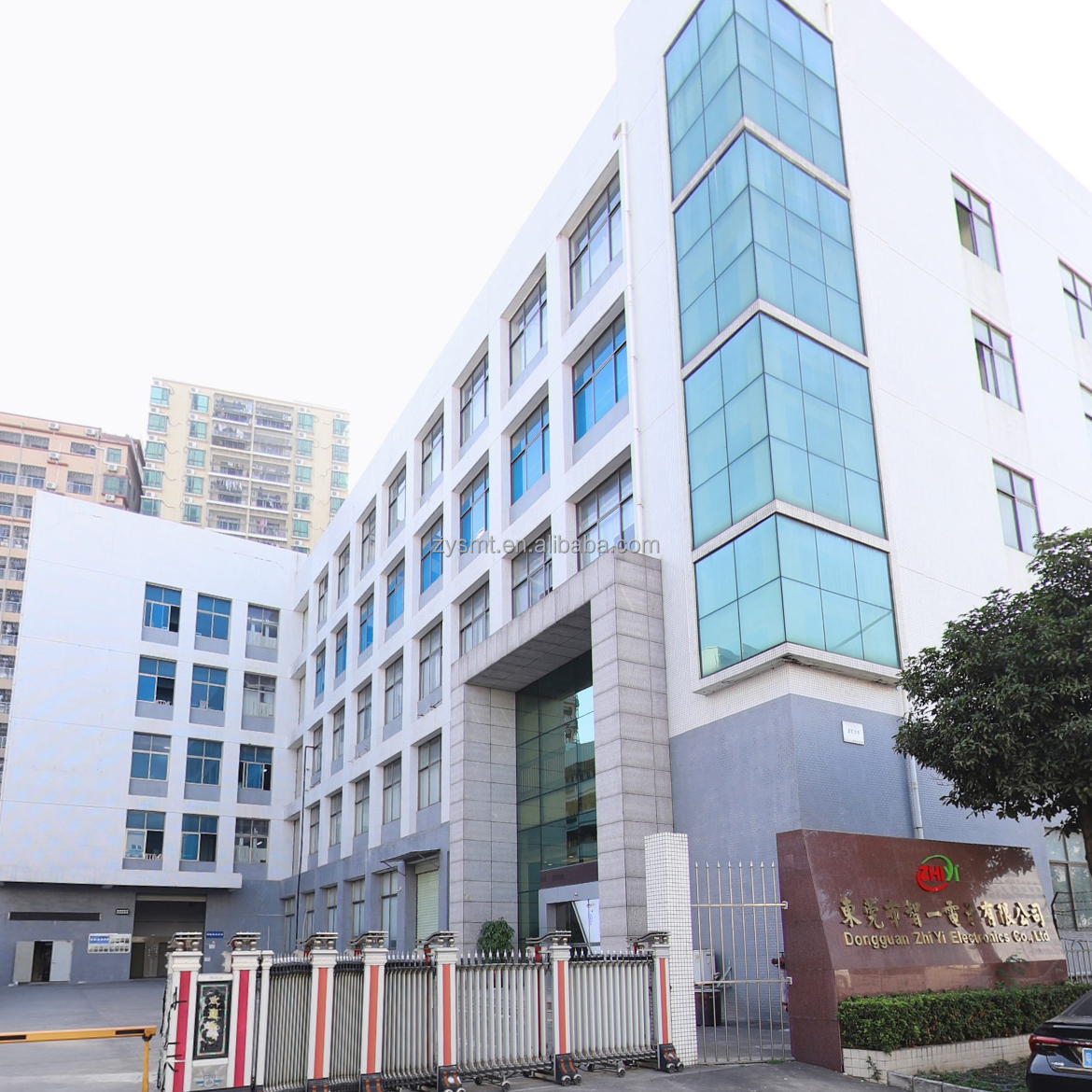

We are a large-scale electronics manufacturer with 26 years of specialization in PCBA processing. Operating from a five-story production facility with 300 employees, we offer comprehensive equipment and customized services for PCB/SMT/DIP assembly. Our expertise covers diverse PCBA products, supported by new and well-equipped machinery, making us a trusted partner in electronic manufacturing.
Certifications
Why Choose Us
Recommend Products

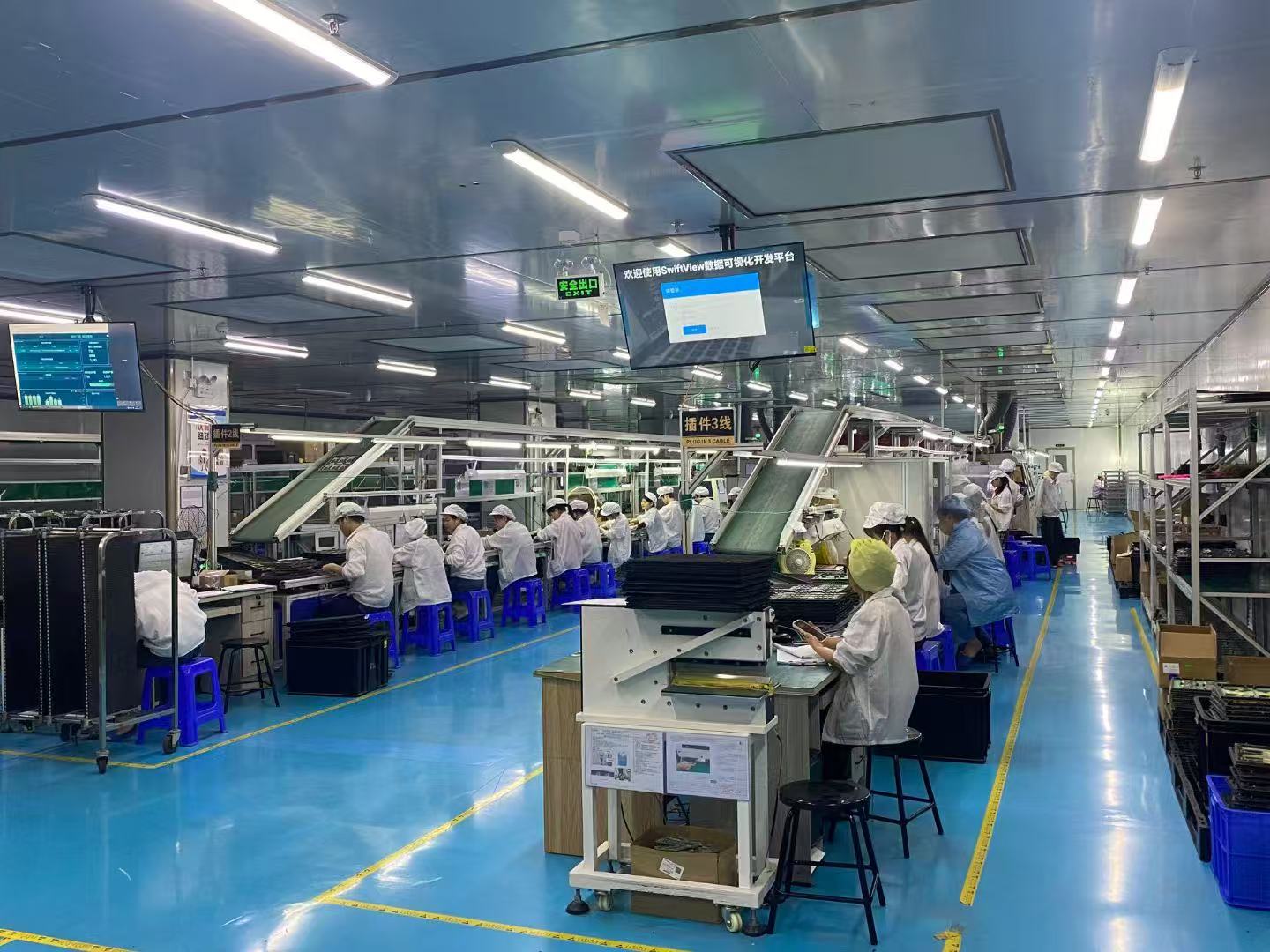

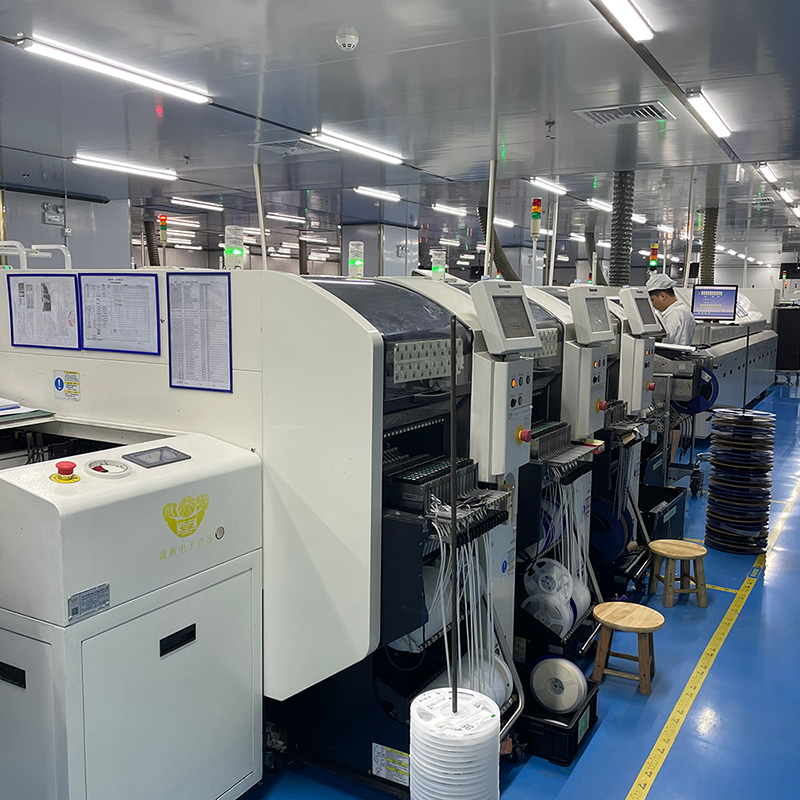

Production department staff
Customer Photos

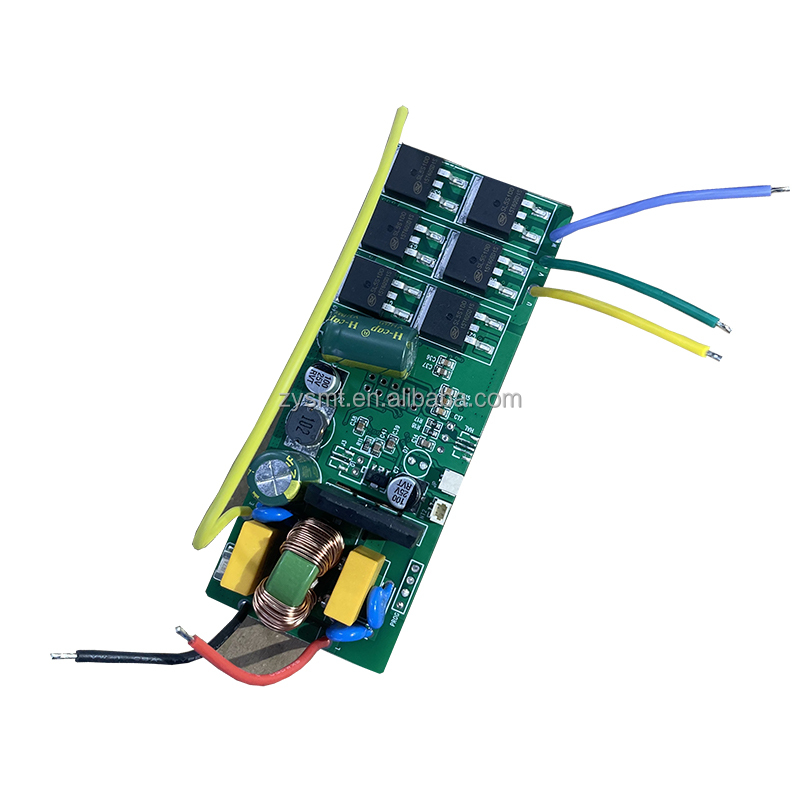

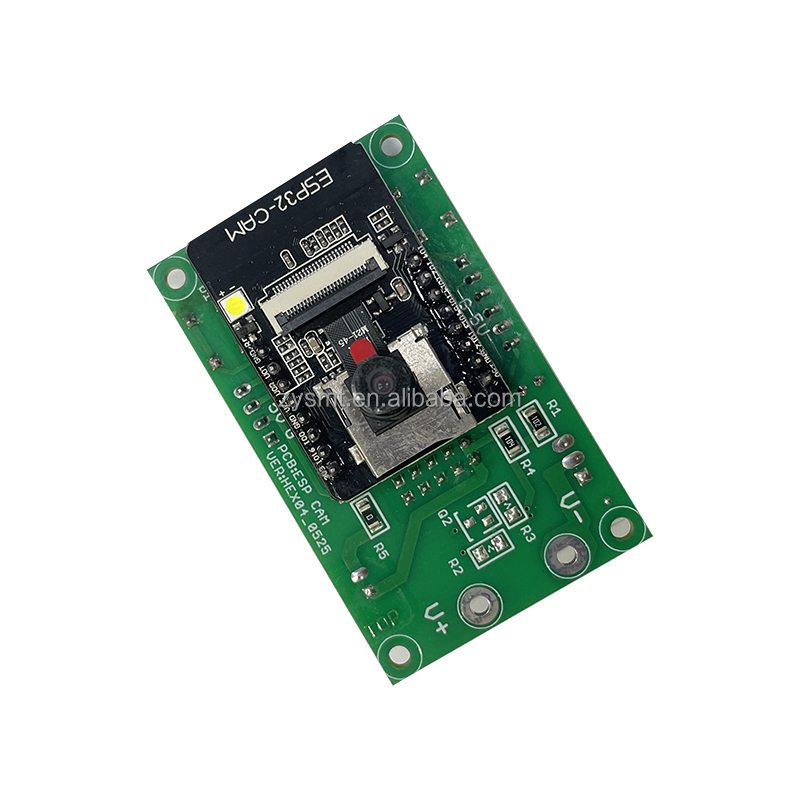

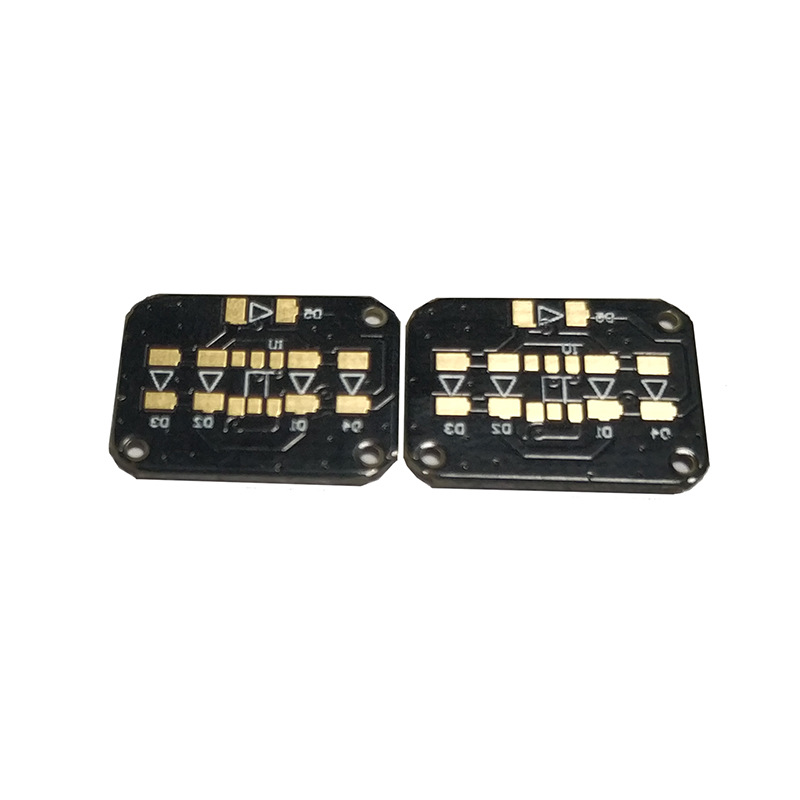

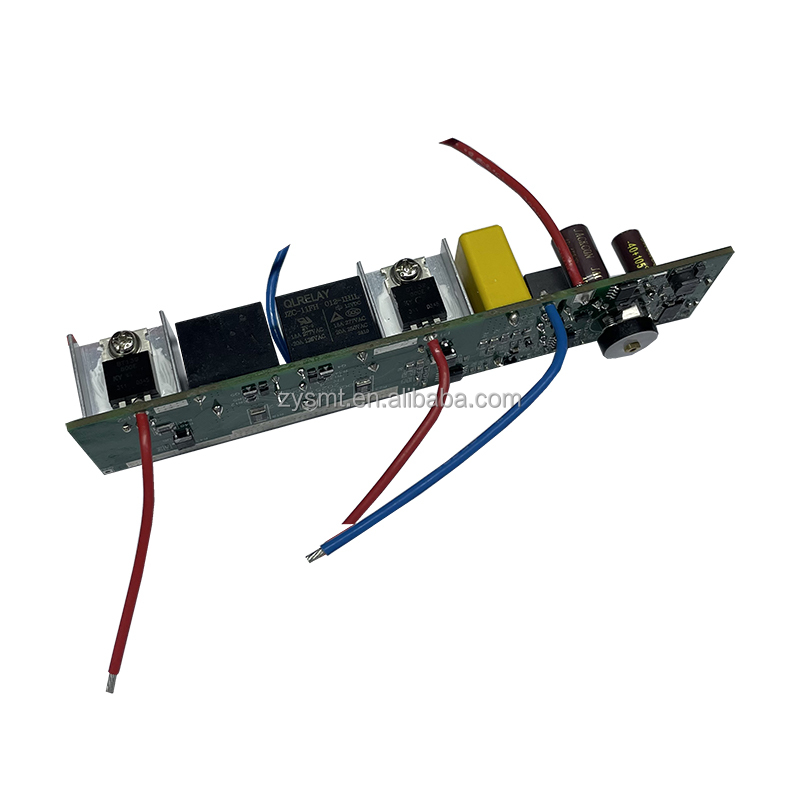

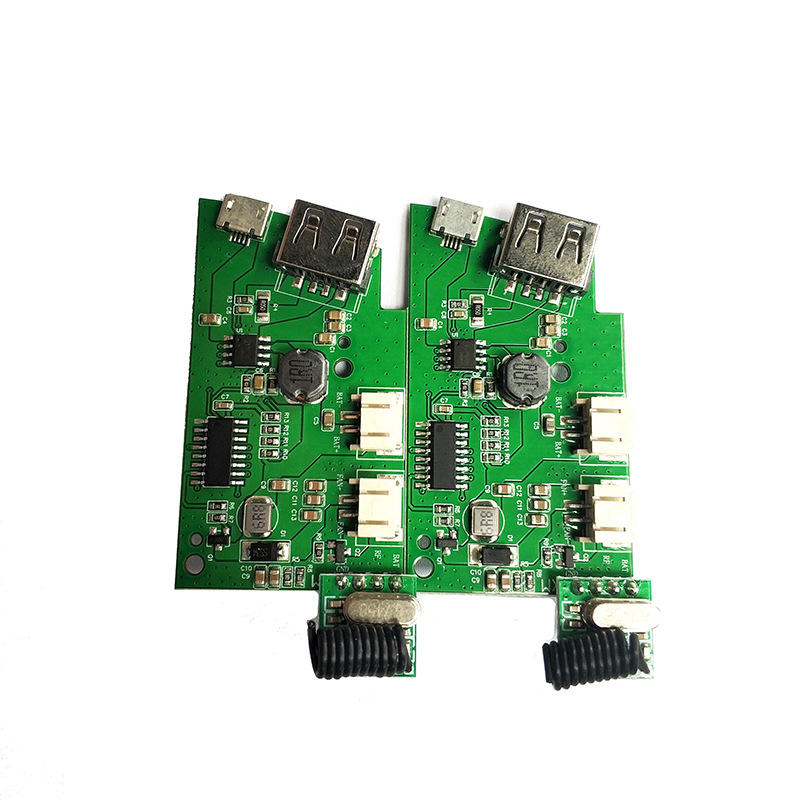

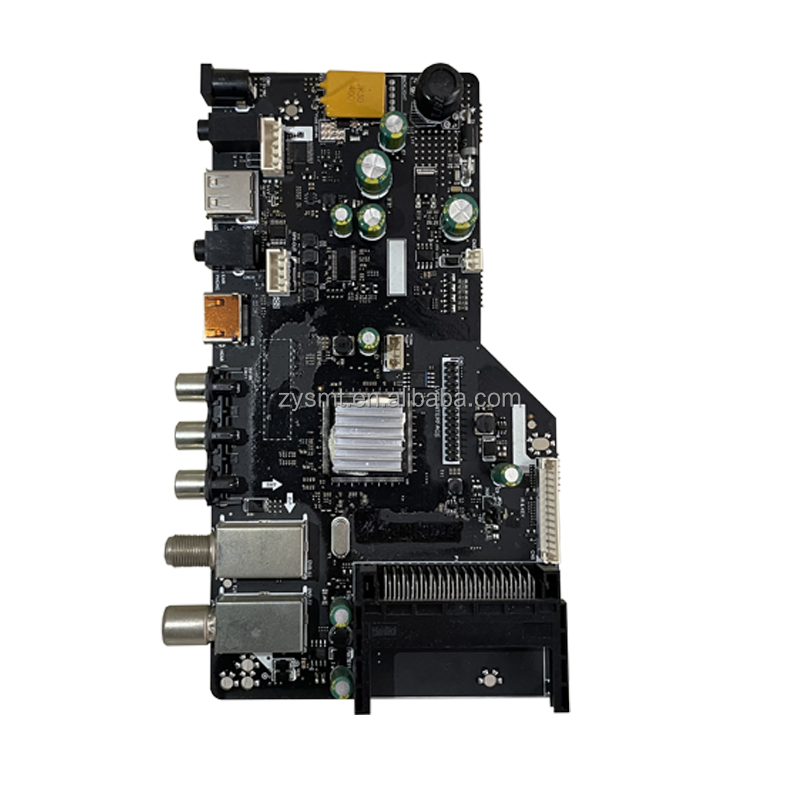

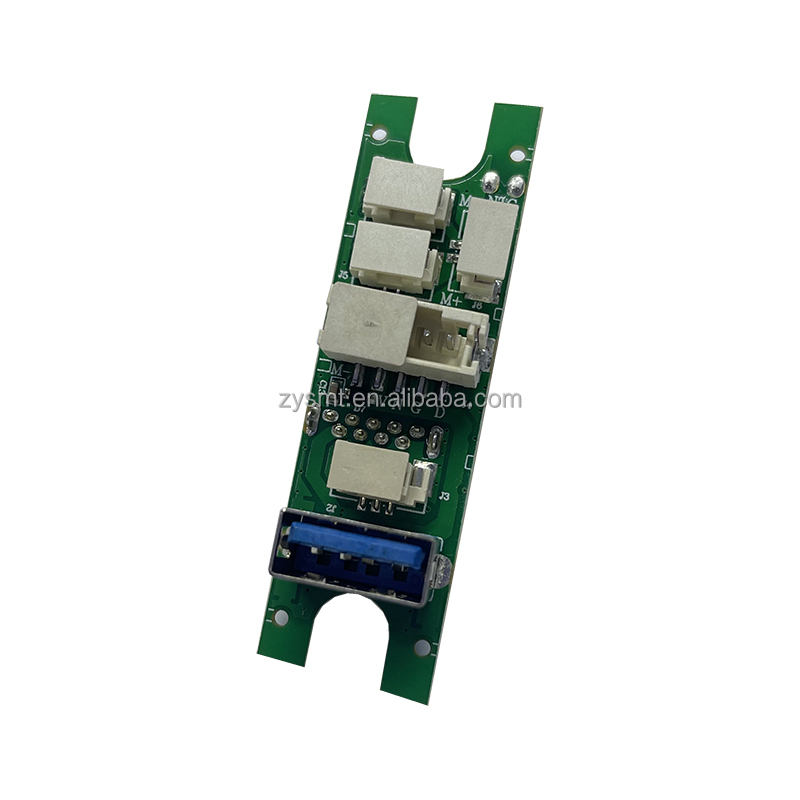

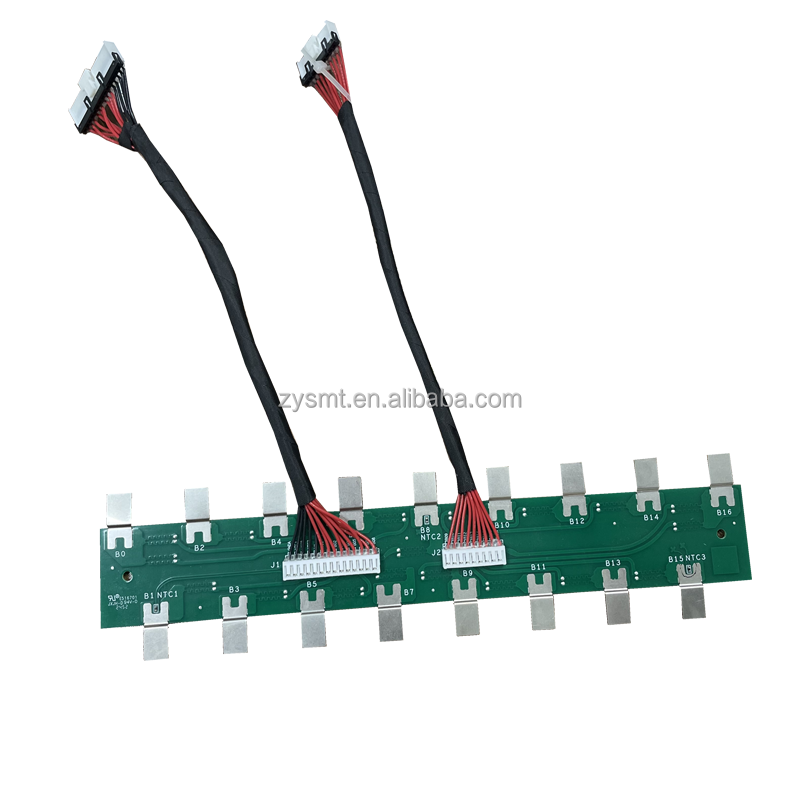

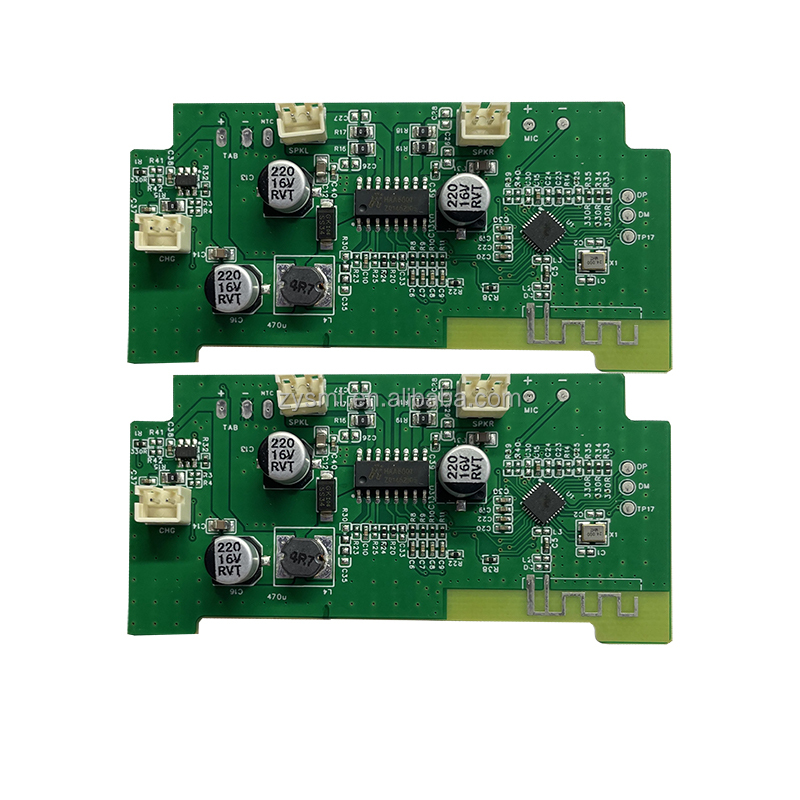

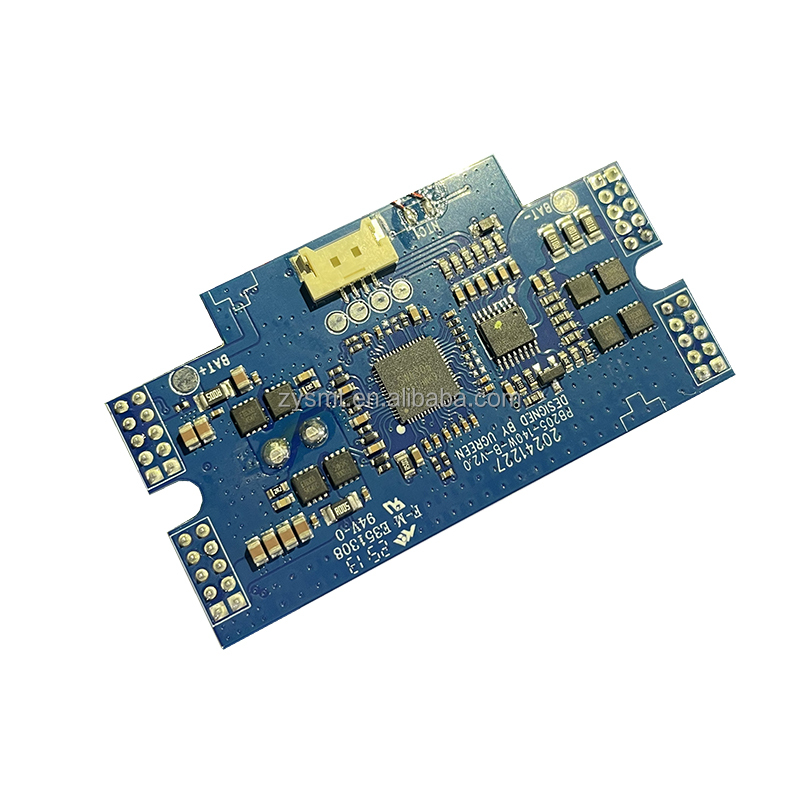

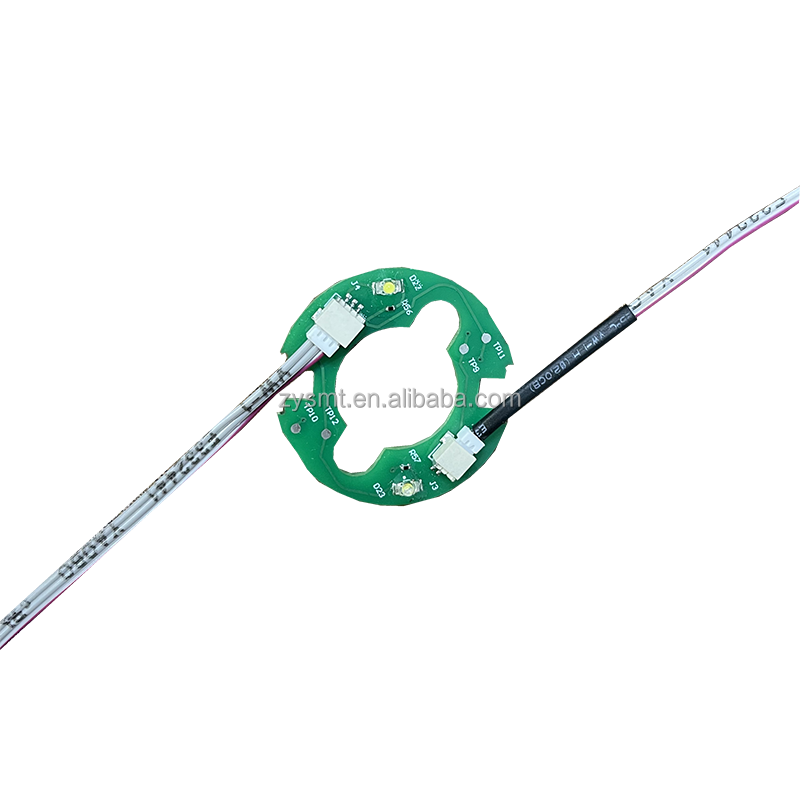

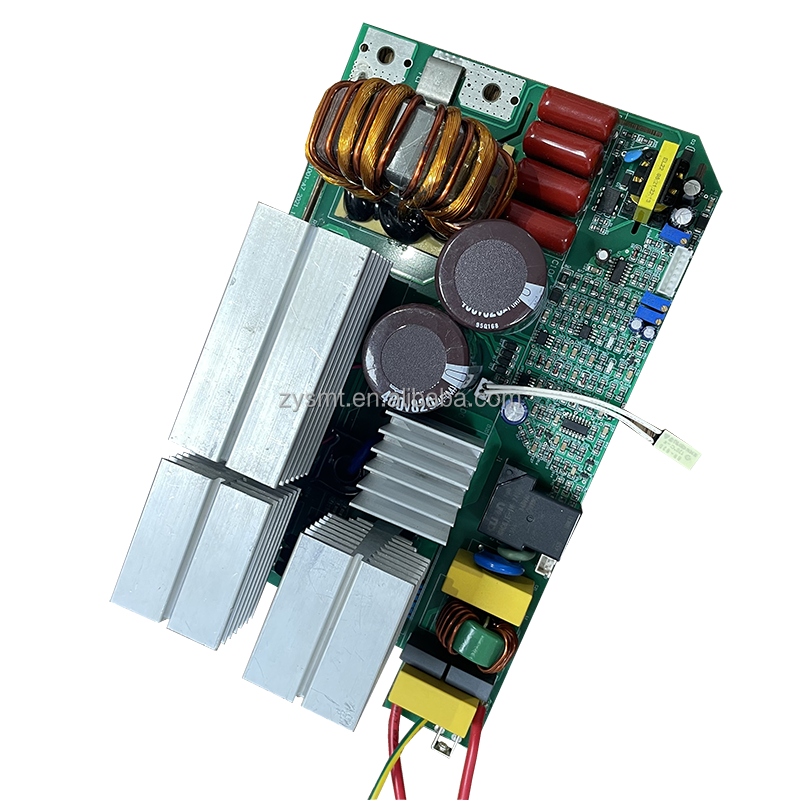

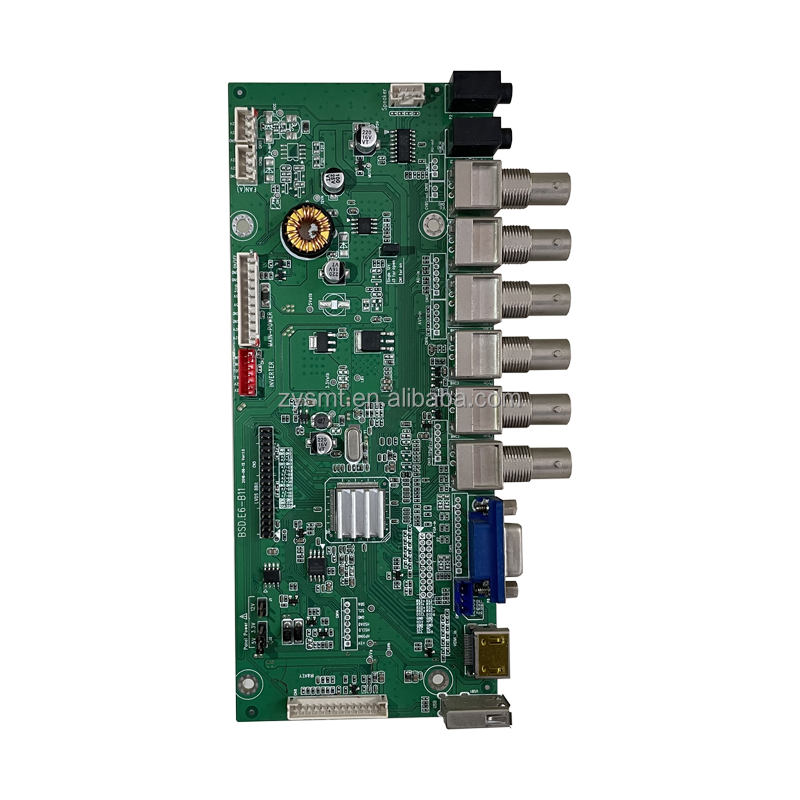

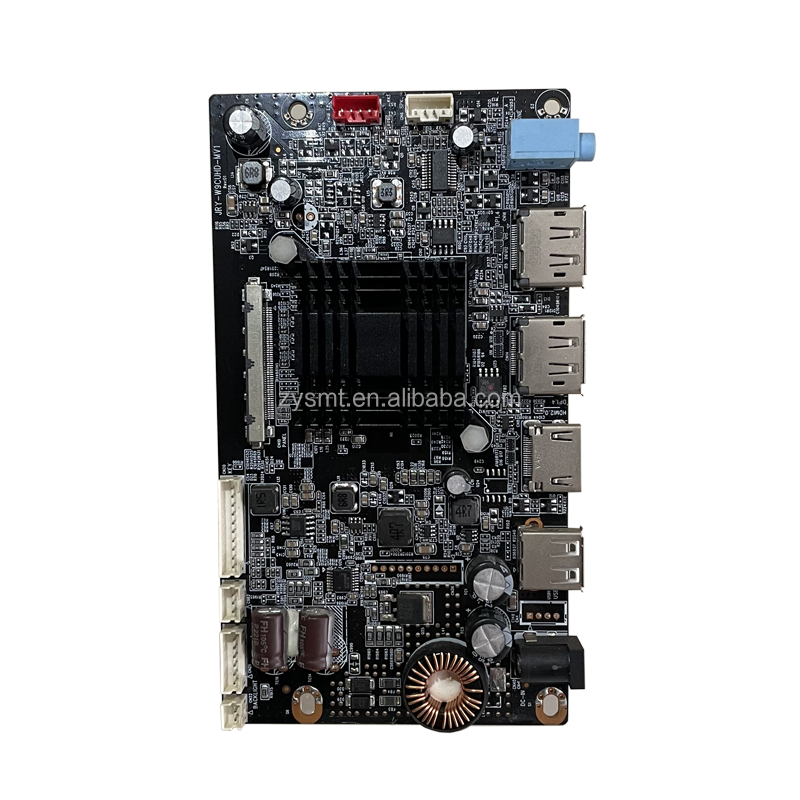

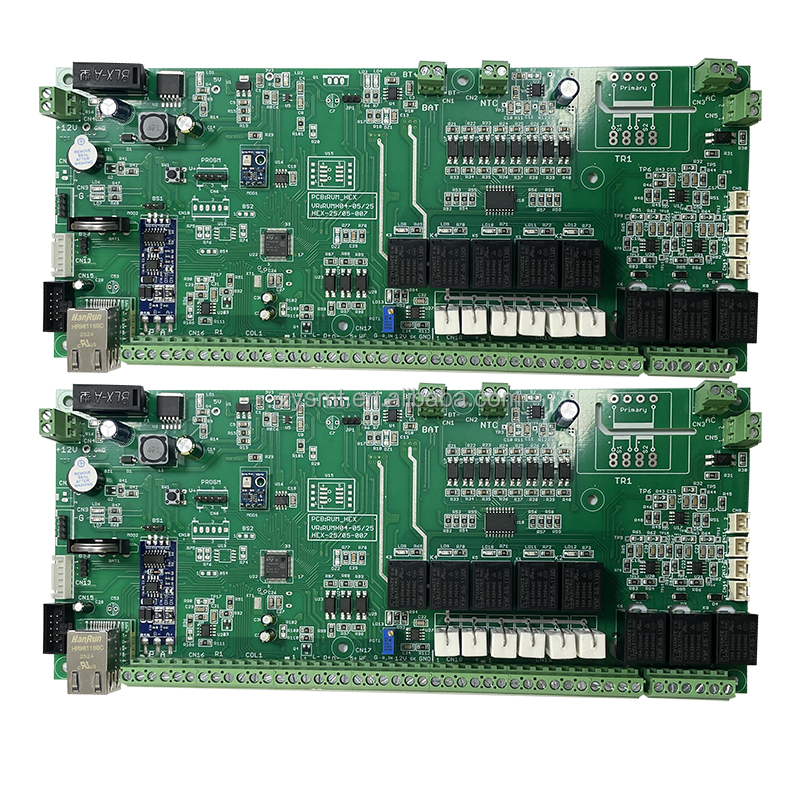

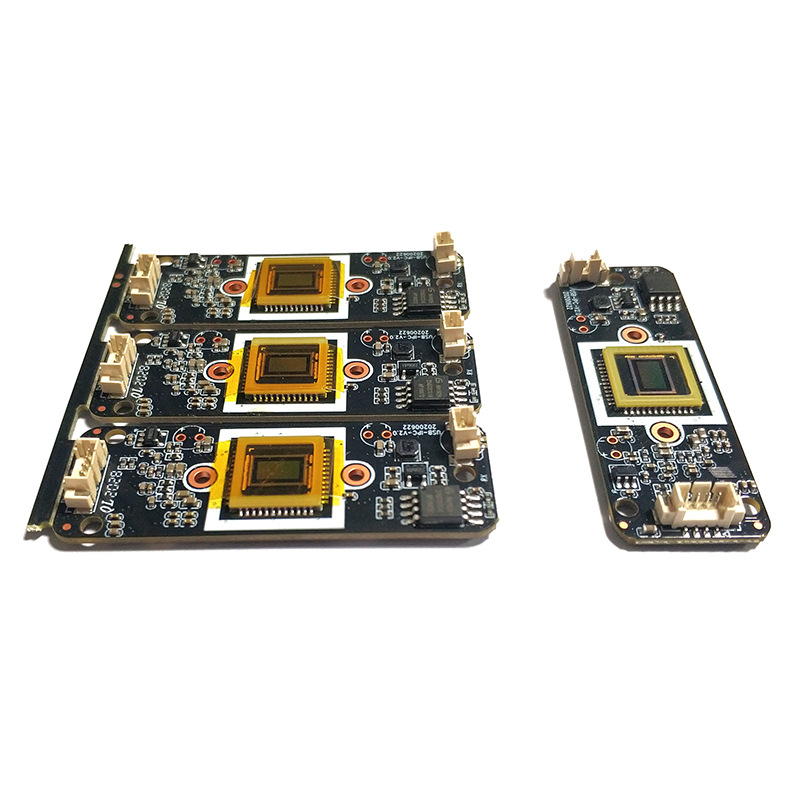

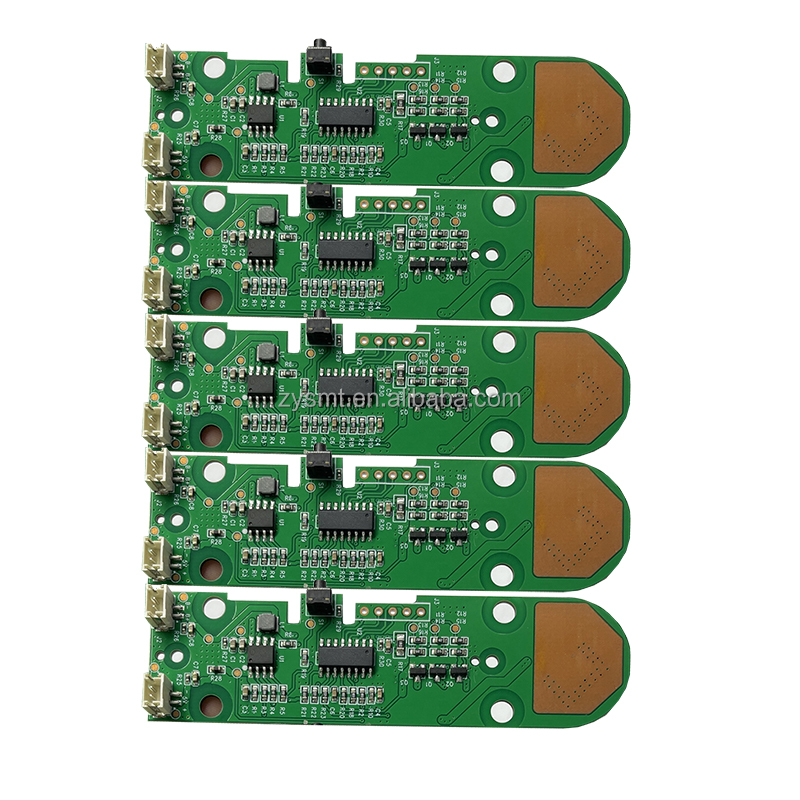

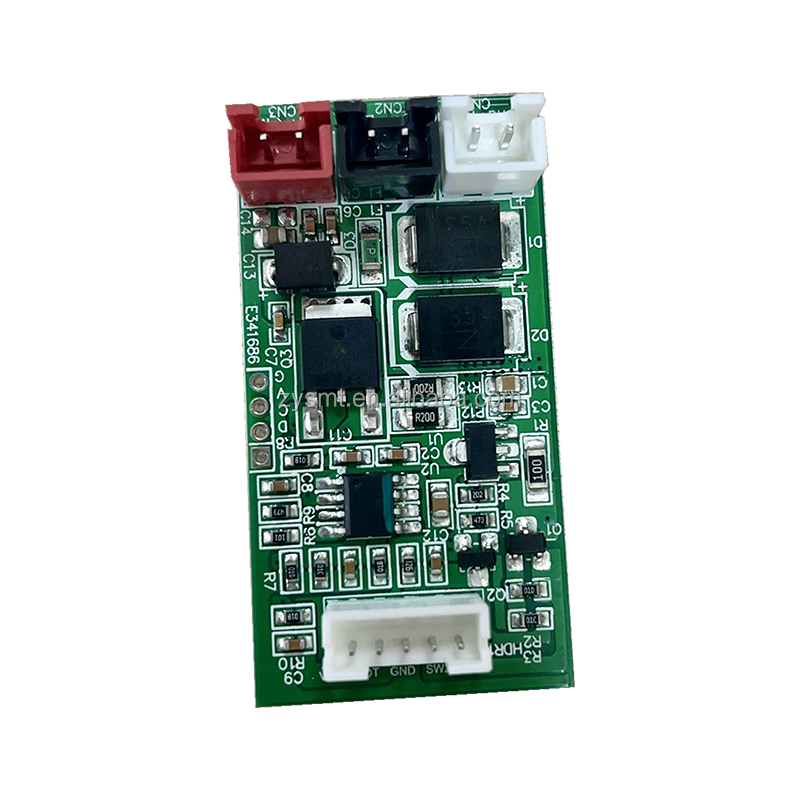

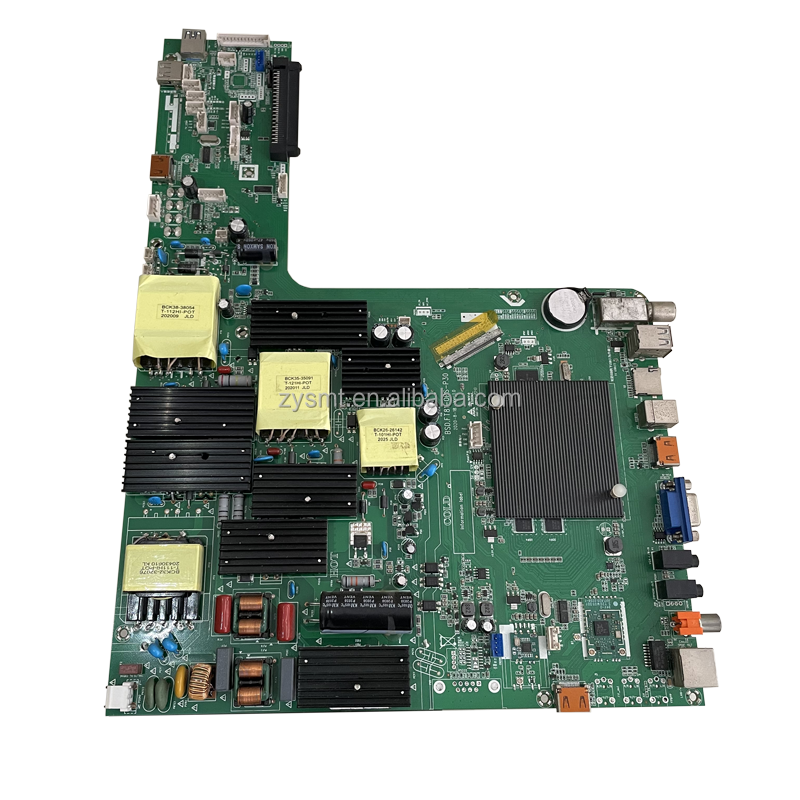

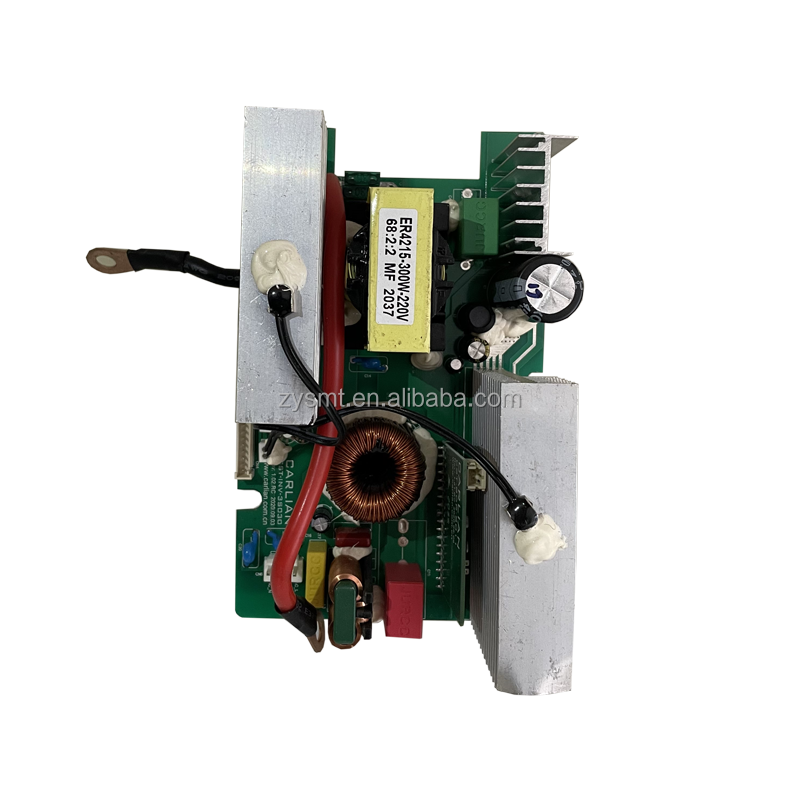

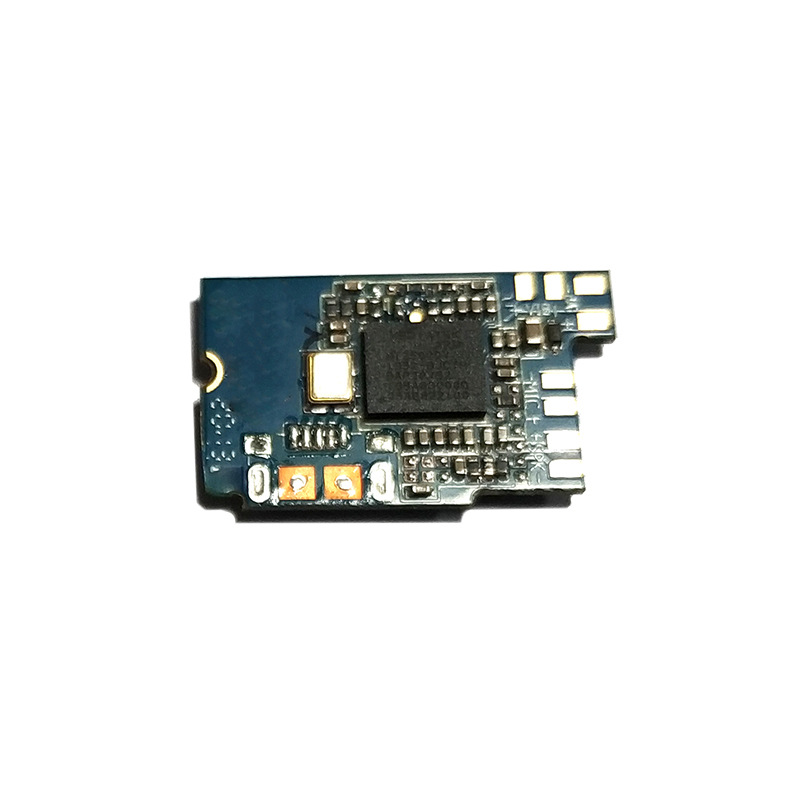

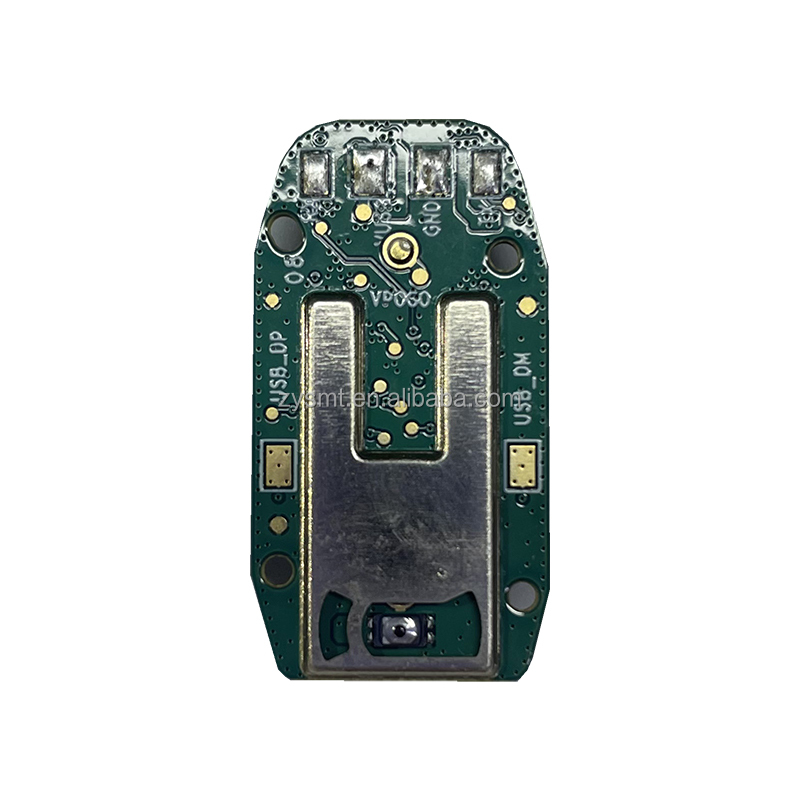

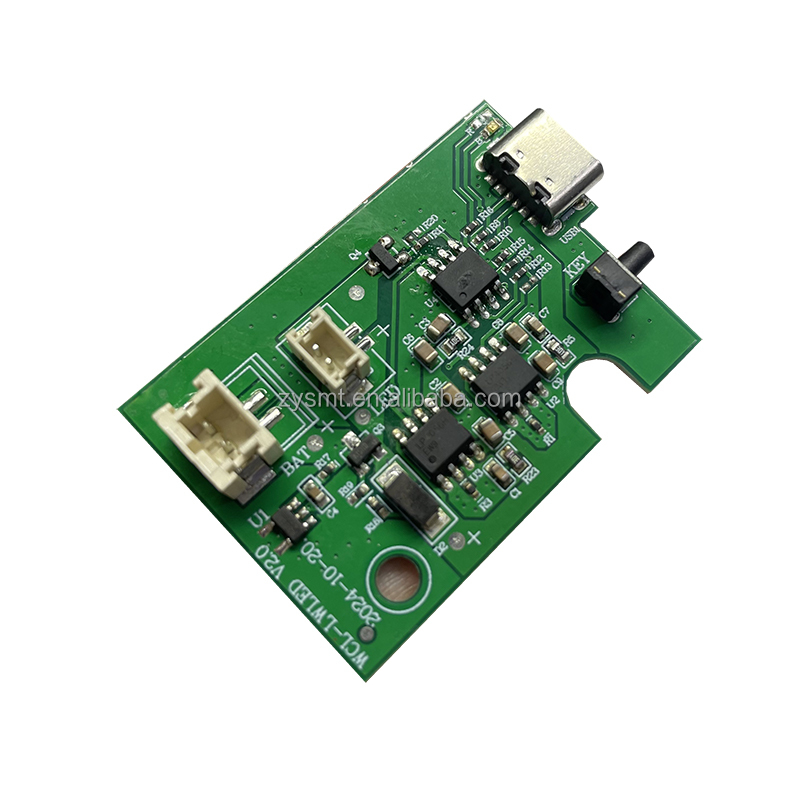

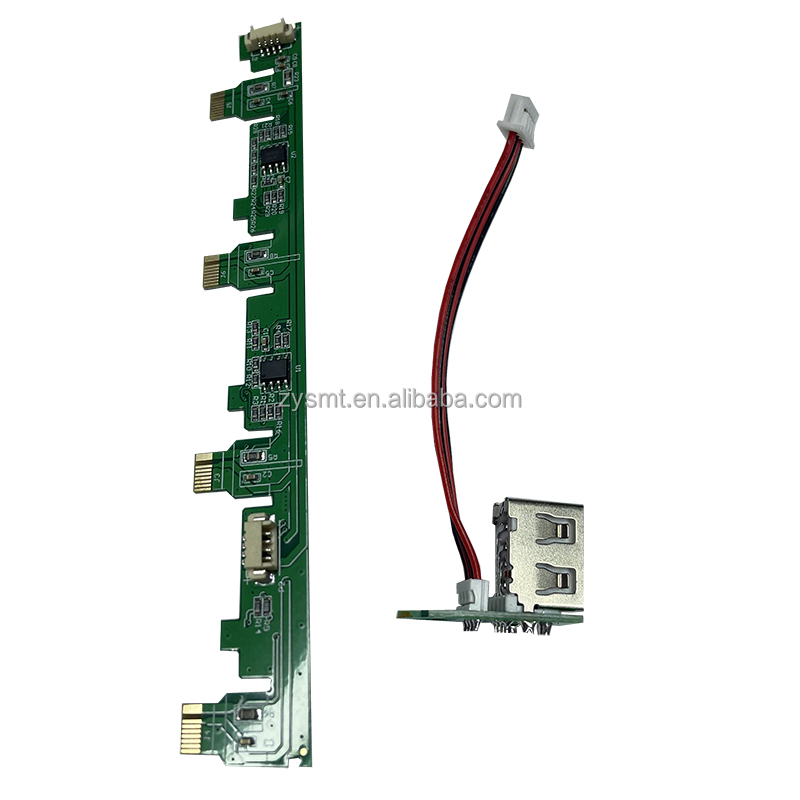

Showcase of Selected Product Case Studies
Technical Specifications
Model Number
PCBA
Type
OEM/ODM
Copper Thickness
1oz
SMT Precision
± 0.02mm
SMT Speed
0.048 sec/component
Maximum SMT PCB Size
400x510mm
Minimum SMD Resistor/Capacitor
0201
Minimum BGA Pitch(R-VTx)
0.2 mm

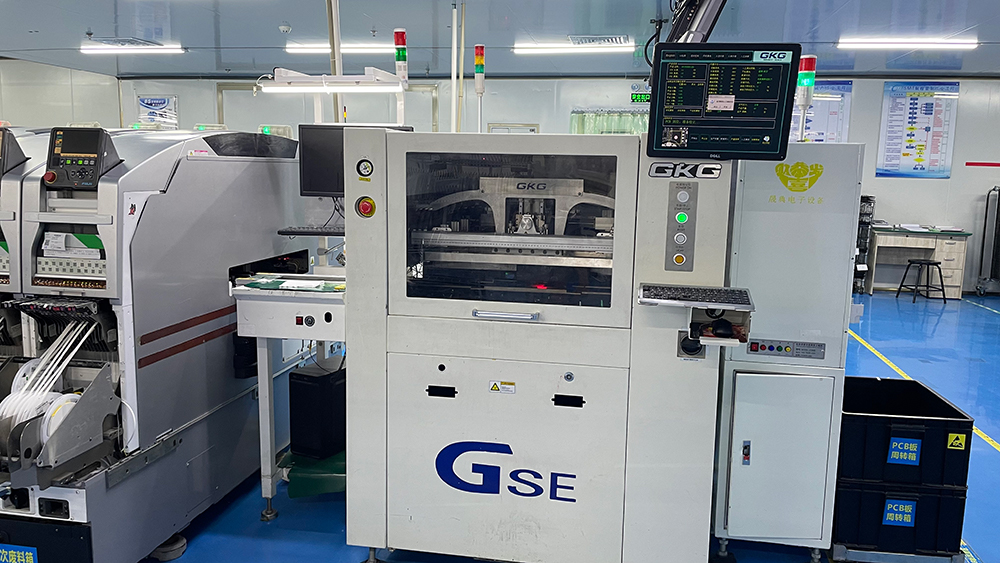

Solder Paste Printing Precision
+0.025 mm
AOI Precision
±0.0024 mm
X-ray Inspection
BGA void detection (0.35 mm ball pitch)
Surface Finishing
HASL, OSP, ENIG, Gold plating
PCB max. Panel Size
541*647mm (Special processes can reach up to 950mm)
Frequently Asked Questions
What are your core capabilities in SMT and DIP assembly?
We offer comprehensive services for PCB/SMT/DIP assembly. With advanced SMT equipment, we maintain a precision standard of ±0.02mm and a production speed of up to 0.048 seconds per component, ensuring highly efficient and accurate processing for all technical specs.
What is the minimum size of component you can process?
Our precision machinery allows us to handle micro-components down to minimum SMD Resistors and Capacitors of 0201 size, as well as complex BGA packaging layouts with a minimum BGA pitch of 0.2 mm.
What measurements are taken to inspect the quality of BGA components?

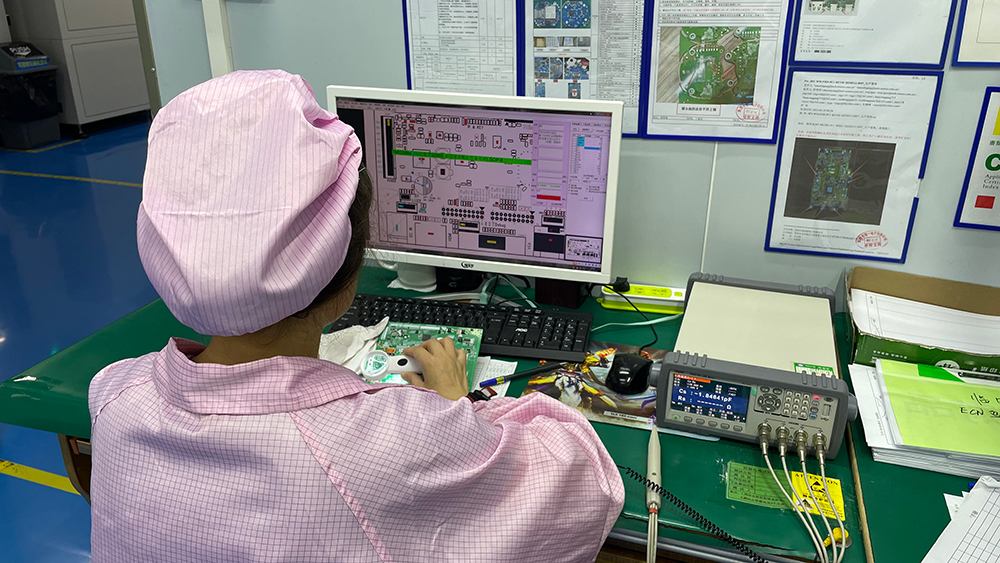

We utilize advanced X-ray Inspection specifically for BGA void detection (handling pitches as small as 0.35 mm). Additionally, we implement automated optical inspection (AOI) with a precision of ±0.0024 mm to monitor component alignments and solder joints.
What PCB board dimensions and panel sizes can your SMT line handle?
Our standard line supports a maximum SMT PCB size of 400x510mm. For panelized designs, the standard maximum panel size is 541*647mm. Under specialized configurations, we can support custom sizing up to 950mm.
What kinds of surface finishing options do you offer?
To support various environmental and electrical demands, we support multiple industry-standard surface finishes including HASL (Hot Air Solder Leveling), OSP (Organic Solderability Preservatives), ENIG (Electroless Nickel Immersion Gold), and Gold Plating.
What services are provided under your customized electronic manufacturing model?
We offer comprehensive OEM and ODM support tailored to your specifications. Our workflow covers raw PCB component management, solder paste printing with a high precision of +0.025 mm, high-speed SMT placement, thorough visual/AOI/X-ray inspection, and manual through-hole DIP assembly.
